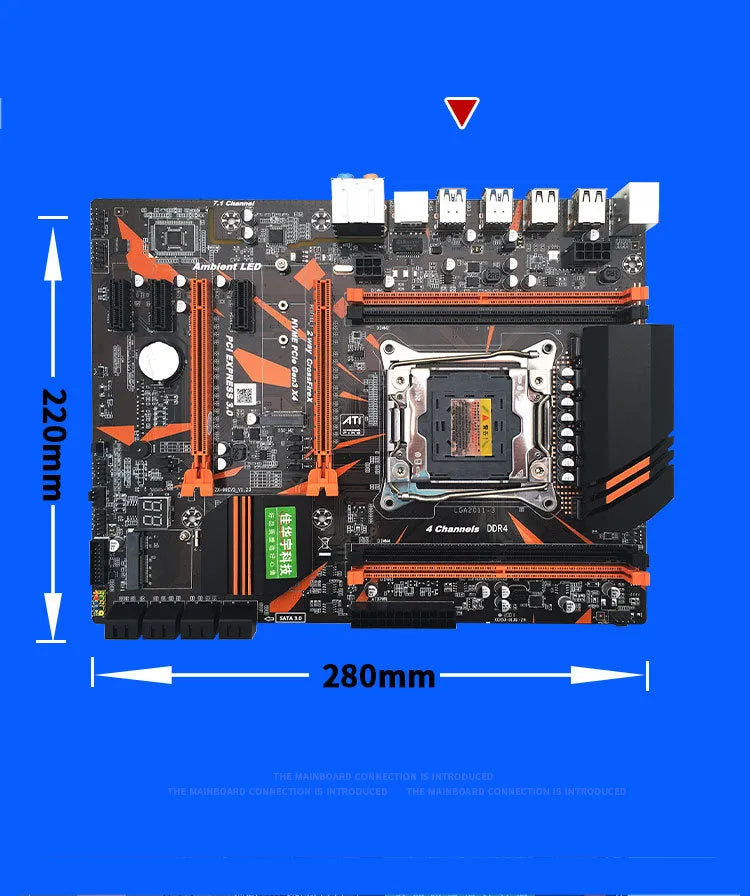

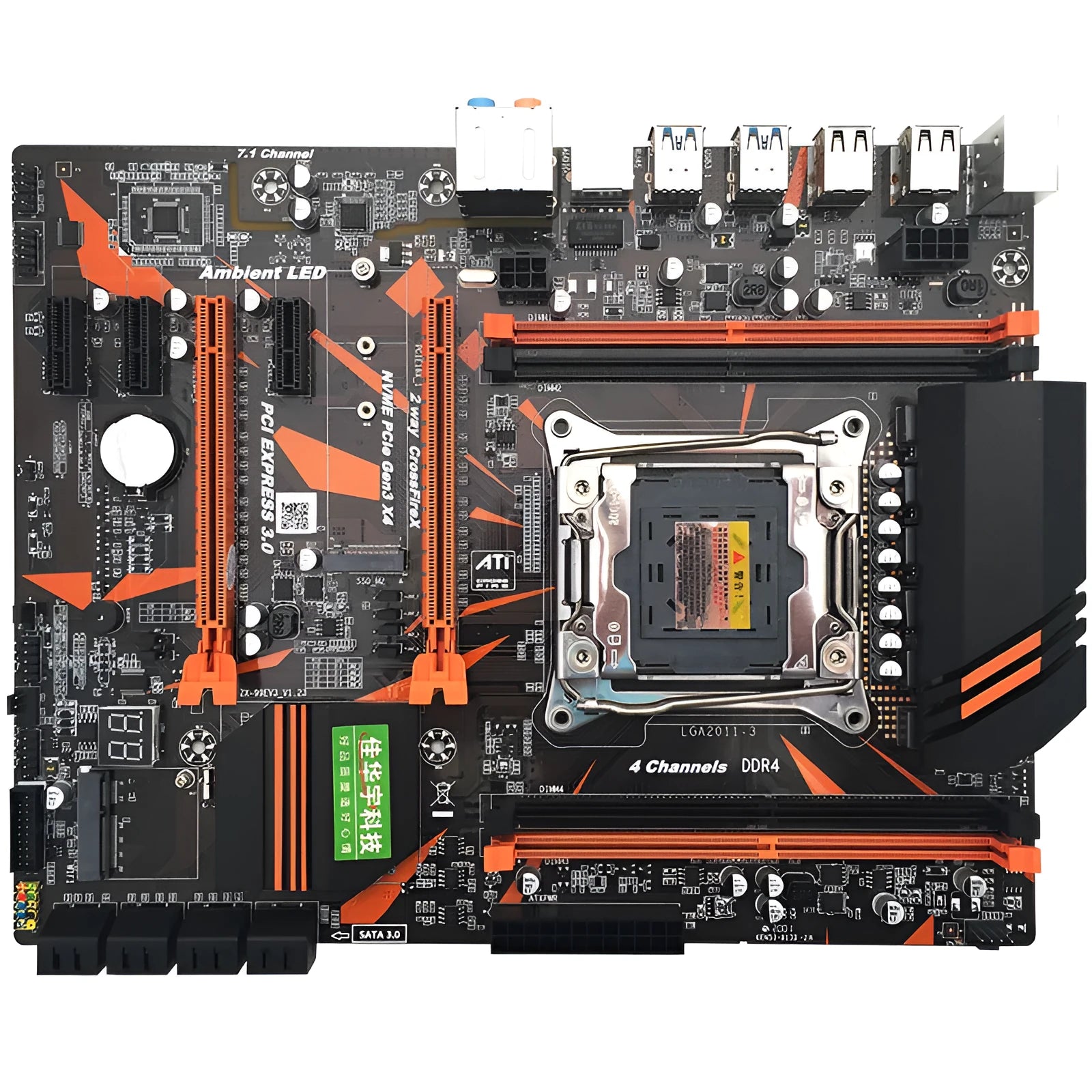

X99 Desktop Motherboard for LGA2011-3 CPUs with Four-Channel DDR4 Memory Support

Designed for builders seeking a high-performance foundation, this X99 motherboard centres around the LGA2011-3 CPU socket, accommodating a range of powerful Intel processors. It unlocks the potential of four-channel DDR4 memory architectures and offers substantial expansion capabilities through multiple PCI-E slots and storage interfaces. The board integrates core system functions including gigabit networking and high-definition audio, packaged with diagnostic aids and backed by a multi-year warranty, making it a practical choice for advanced desktop workstations, content creation rigs, and gaming systems where processing power and memory bandwidth are paramount.

Core Specifications and Processor Compatibility

The motherboard's defining feature is its LGA2011-3 CPU socket, a platform designed for high-end desktop (HEDT) and workstation-grade processors. This specification determines the core computing power of your build.

Supported CPU Families

According to the source, this socket supports Intel's Xeon E5 v3 series processors (identified by codes beginning with '58' or '6869') as well as Intel Core i7 series CPUs from the same generation, such as the 5820K and 5960X. A crucial compatibility note is provided: Core i7 processors cannot operate simultaneously with server-specific memory modules (REG ECC), a consideration important for part selection.

Memory Architecture and Capacity

The board is equipped with four DDR4 DIMM slots, enabling a four-channel memory configuration. This architecture significantly increases memory bandwidth compared to dual-channel setups. It supports DDR4 memory rated at 2400MHz or 2333MHz and can accommodate a maximum total capacity of 128GB, achieved by using four 32GB modules. This high capacity is beneficial for memory-intensive applications like video editing, 3D rendering, and scientific computing.

Expansion, Storage, and Connectivity

Beyond the CPU and memory, the motherboard provides a comprehensive suite of slots and ports for adding components and connecting peripherals, forming the I/O backbone of the system.

Graphics and Add-in Card Slots

For graphics performance, the board includes two PCI-E x16 slots, allowing for multi-GPU configurations (like NVIDIA SLI or AMD CrossFire, subject to chipset and driver support) or the use of other high-bandwidth expansion cards. Additionally, three PCI-E x1 slots are available for smaller add-in cards such as sound cards, capture cards, or additional USB controllers.

Storage Interfaces and Options

Storage connectivity is well-covered with eight SATA 3.0 (6 Gb/s) ports for traditional hard drives and SSDs. A key modern feature is the inclusion of one M.2 slot that supports PCIe NVMe protocols, enabling the use of ultra-fast M.2 solid-state drives that offer significantly higher sequential read/write speeds than SATA-based drives, reducing system and application load times.

Rear I/O and Integrated Features

The rear panel provides a practical mix of legacy and modern connections. It houses a PS/2 port for keyboard/mouse, one RJ-45 gigabit Ethernet port powered by the integrated RTL8111H controller, four USB 3.0 ports, and audio jacks configured for 7.1 channel surround sound output from the onboard audio chip. Internal headers also provide connections for additional USB 2.0 and 3.0 ports.

Build, Diagnostics, and Support

The physical construction and supporting features of the motherboard aid in assembly, troubleshooting, and long-term reliability, contributing to the overall building experience.

Power Delivery and Physical Build

Power is supplied via a standard 24-pin ATX connector and an 8-pin EPS12V CPU power connector. The source notes a specific operational detail: the system relies on the main 24-pin power supply when only a 4-pin CPU connector is connected. The board implements a 4-phase power design to deliver stable voltage to the CPU. Aesthetically, it includes an '8LED colour audio lamp' and a WiFi antenna interface bracket, though the wireless card itself may not be included.

Diagnostic and Troubleshooting Aids

A valuable feature for builders is the integrated digital fault diagnosis display, often referred to as a POST code display or debug LED. This, combined with a system buzzer (speaker), provides visual and audible cues during the boot process, helping to quickly identify issues with CPU, memory, or other components if the system fails to start.

Warranty and Product Notes

The product comes with a three-year warranty. The policy details a split structure: one year of free service provided by the shop or manufacturer under China's 'Three Guarantees' consumer protection rules, followed by two years of maintenance for which costs may apply. The source also includes an important reminder: the colour of slots and the baseplate may vary between manufacturing batches due to continuous product optimisation, and minor detail adjustments might occur before listings are updated.
