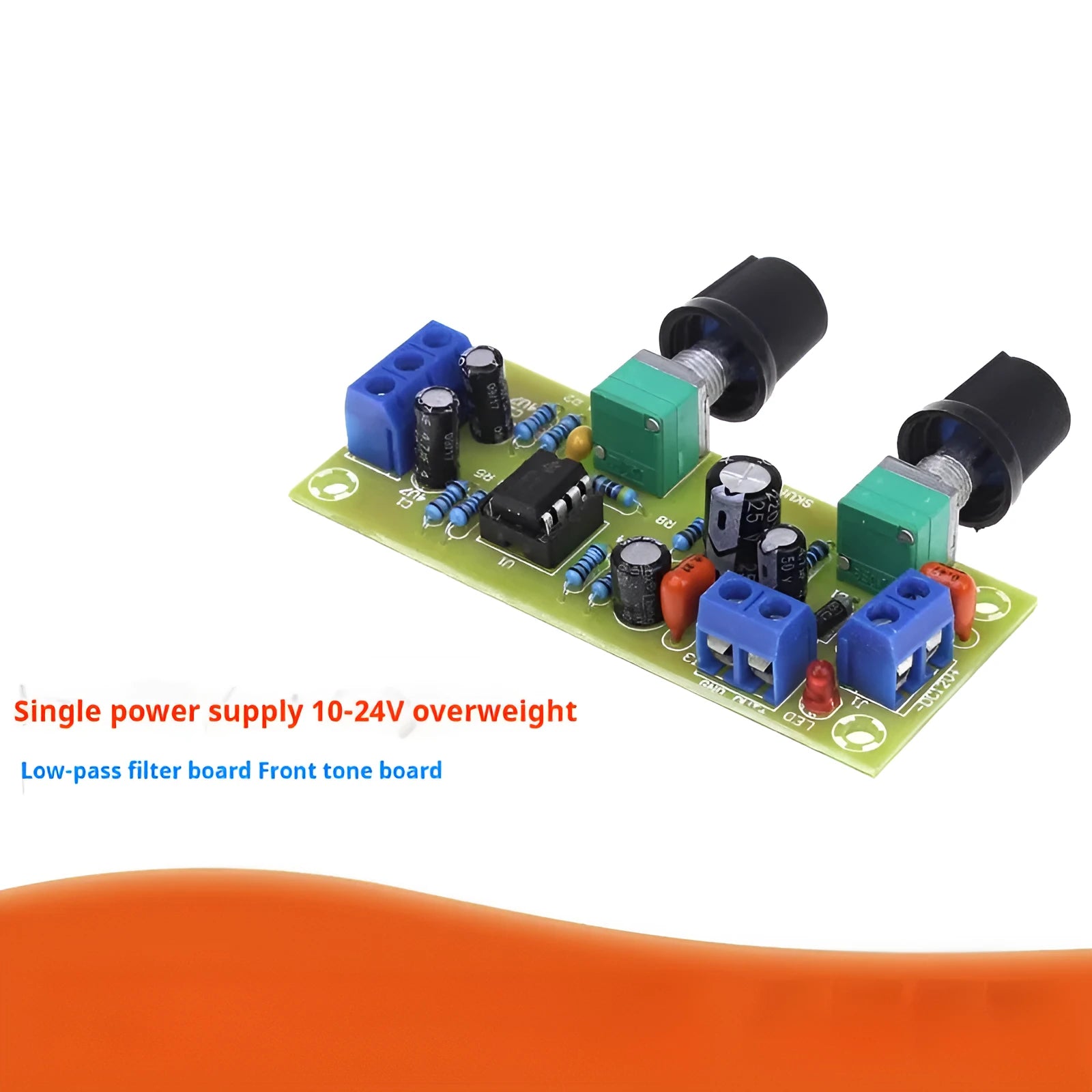

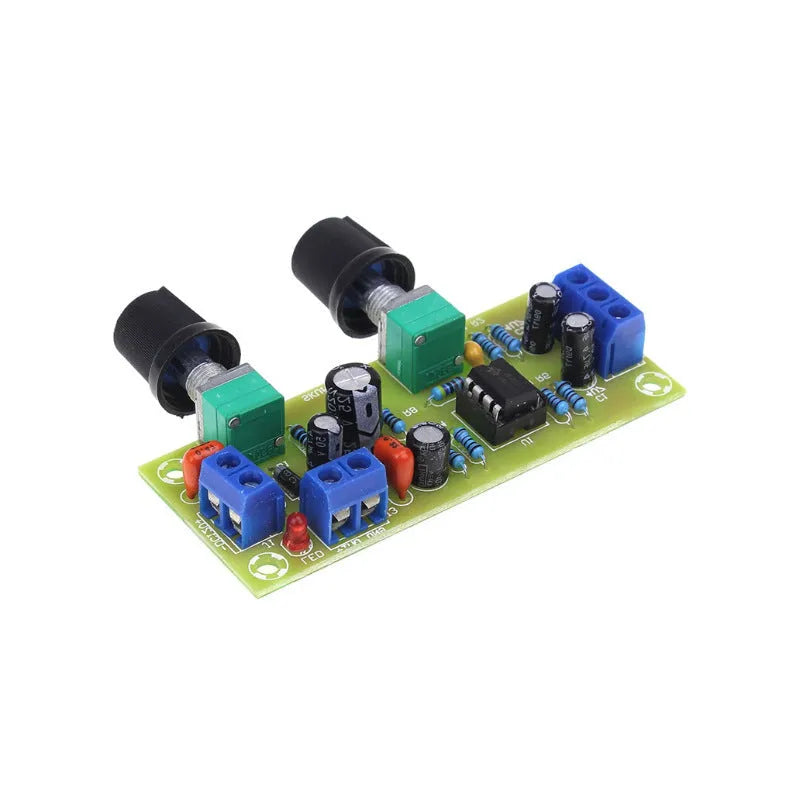

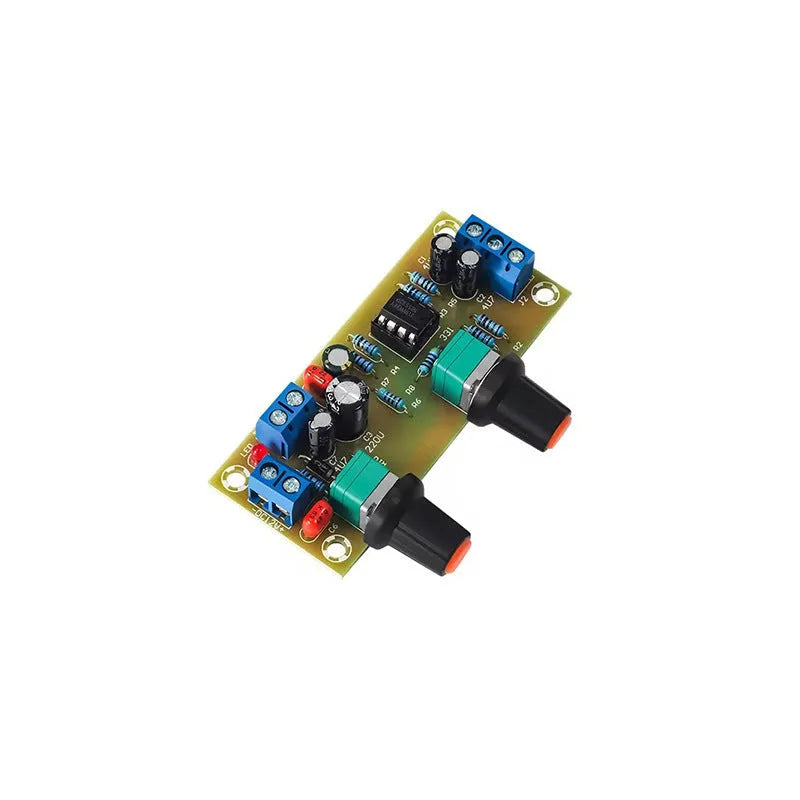

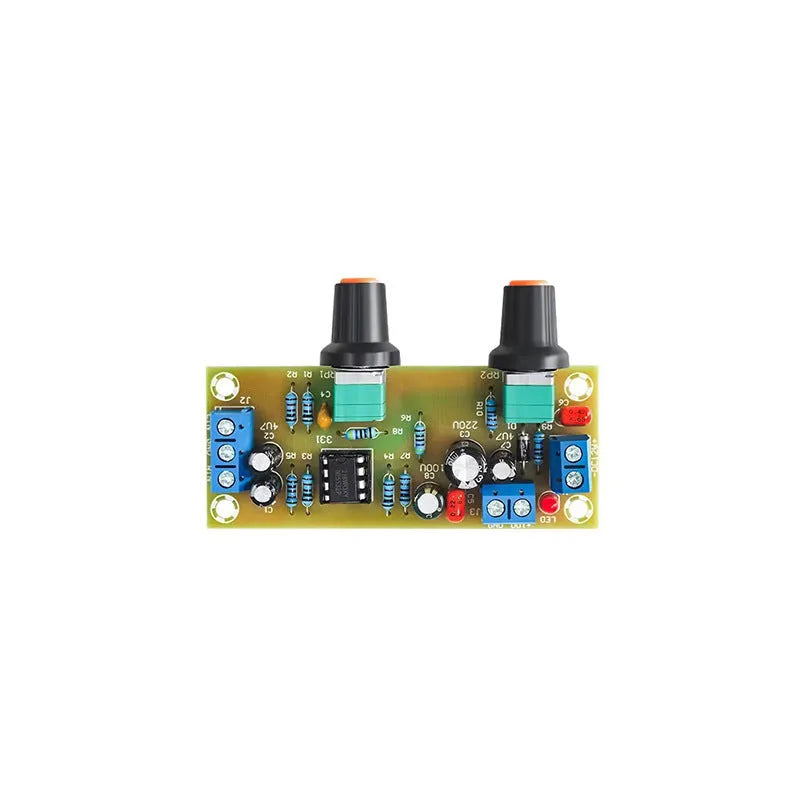

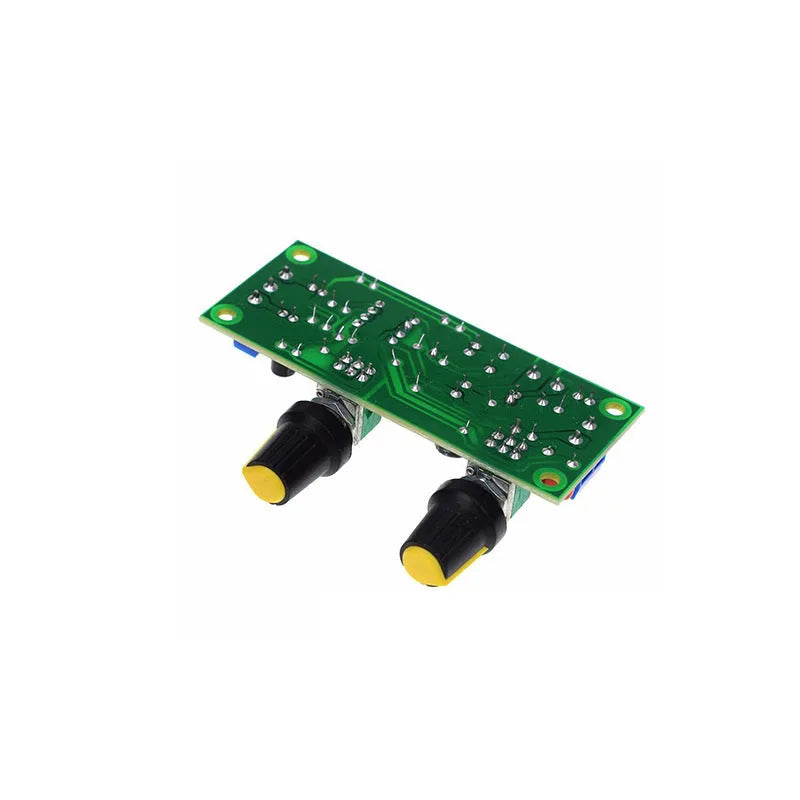

10-24V Super Dynamic Bass Boost Front Stage Board with Mono Output and FR-4 Fibreglass Construction

This specialised audio processing board provides bass enhancement within the 22Hz-300Hz frequency range, making it suitable for various audio system upgrades. Its single DC power supply requirement between 10-24V offers installation flexibility for automotive, portable, or fixed audio applications. The board accepts both mono and dual channel audio inputs while providing a consolidated mono output, simplifying signal routing in audio chain configurations. With its compact dimensions and precise mounting specifications, this board integrates cleanly into existing audio setups without requiring extensive modification.

Features and Construction

The board's physical construction follows industry-standard specifications for reliable performance in audio applications. All measurements and specifications are provided to ensure proper integration with your existing audio components.

Material and Build

Manufactured using FR-4 fibreglass material, this printed circuit board offers stable electrical characteristics essential for audio signal processing. The 1.6mm thickness provides sufficient rigidity for most installation scenarios while maintaining a low profile. The fibreglass construction ensures consistent performance across temperature variations typically encountered in audio equipment environments.

Size and Practical Fit

With PCB dimensions of 78mm by 32mm, this board occupies minimal space within audio system enclosures. The 70mm by 24mm fixing hole centre spacing allows for secure mounting using standard hardware. Each mounting hole features a 3.2mm diameter to accommodate common screw sizes. The potentiometer shafts are spaced 32.5mm apart for precise control adjustment accessibility.

Uses and Placement

This bass boost board serves specific functions within audio signal chains, enhancing low-frequency response while maintaining signal integrity.

Event or Professional Use

In professional audio setups, this board can enhance bass response in monitor systems or subwoofer signal chains. The 10-24V power supply range accommodates various power sources commonly available in portable sound systems. The mono output simplifies integration with single-channel amplification systems while the input flexibility accepts signals from multiple source types.

Everyday Home Use

For home audio enthusiasts, this board provides bass enhancement for car audio systems, home theatre subwoofers, or personal audio setups. The compact size allows installation in constrained spaces within vehicle dashboards or audio equipment racks. The straightforward power requirements make it compatible with common 12V automotive systems or adjustable power supplies.

Benefits and Buying Value

This board offers practical advantages through its specific design features and construction quality.

Reuse and Low Maintenance

The robust FR-4 construction requires minimal maintenance beyond basic electrical connection care. No specialised cleaning or calibration procedures are needed for ongoing operation. The board's design focuses on reliable performance without complex adjustment requirements.

Why Choose This Product

This bass boost board provides precise frequency enhancement within the 22Hz-300Hz range with flexible power requirements. The complete specification details allow for confident integration planning. The included mounting hole pattern and potentiometer spacing ensure straightforward installation without guesswork.
