Silicon Labs EFR32MG21 Zigbee 3.0 USB Dongle for DIY Smart Home Hubs

This USB dongle serves as a core hardware component for building a personal Zigbee smart home gateway. Centred on the capable Silicon Labs EFR32MG21 system-on-chip, it is designed to interface with open-source home automation platforms, transforming a standard computer into a network coordinator. It arrives pre-configured with the EmberZNet Serial Protocol (EZSP) version 8, reducing initial setup complexity. While it follows Zigbee 3.0 standards, ensuring broad protocol compatibility, its confirmed operation is specifically with software like Home Assistant's ZHA component or the Zigbee2MQTT project, providing a validated path for network creation and device management.

Technical Specifications and Hardware

The dongle's performance and connectivity are defined by its specific electronic components and construction. This section details the chipsets, radio capabilities, and physical build that enable its function as a network bridge.

Core Chipset and Connectivity

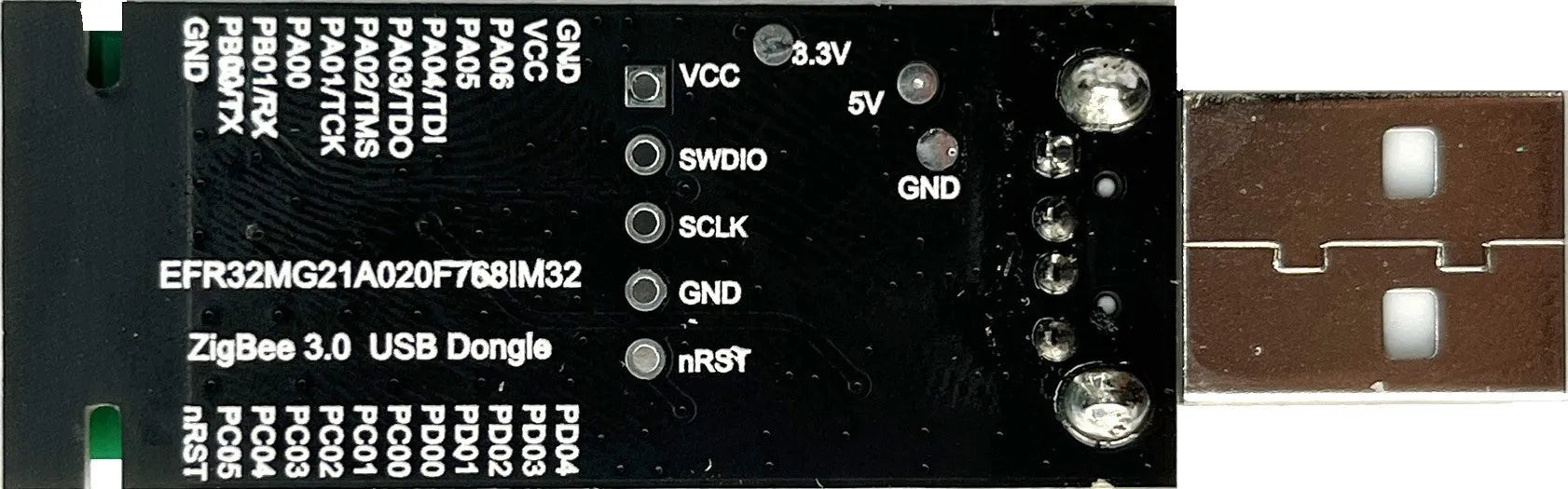

At the heart of the dongle is the EFR32MG21, a multi-protocol wireless System-on-Chip (SoC) from Silicon Labs optimised for Zigbee and other low-power mesh networks. This is paired with a CH340E chip, which handles the USB-to-serial communication, allowing the dongle to appear as a virtual COM port on your computer. This combination provides the essential link between the physical Zigbee radio and the gateway software running on your system, enabling commands and data to flow seamlessly.

Radio Performance and Antenna

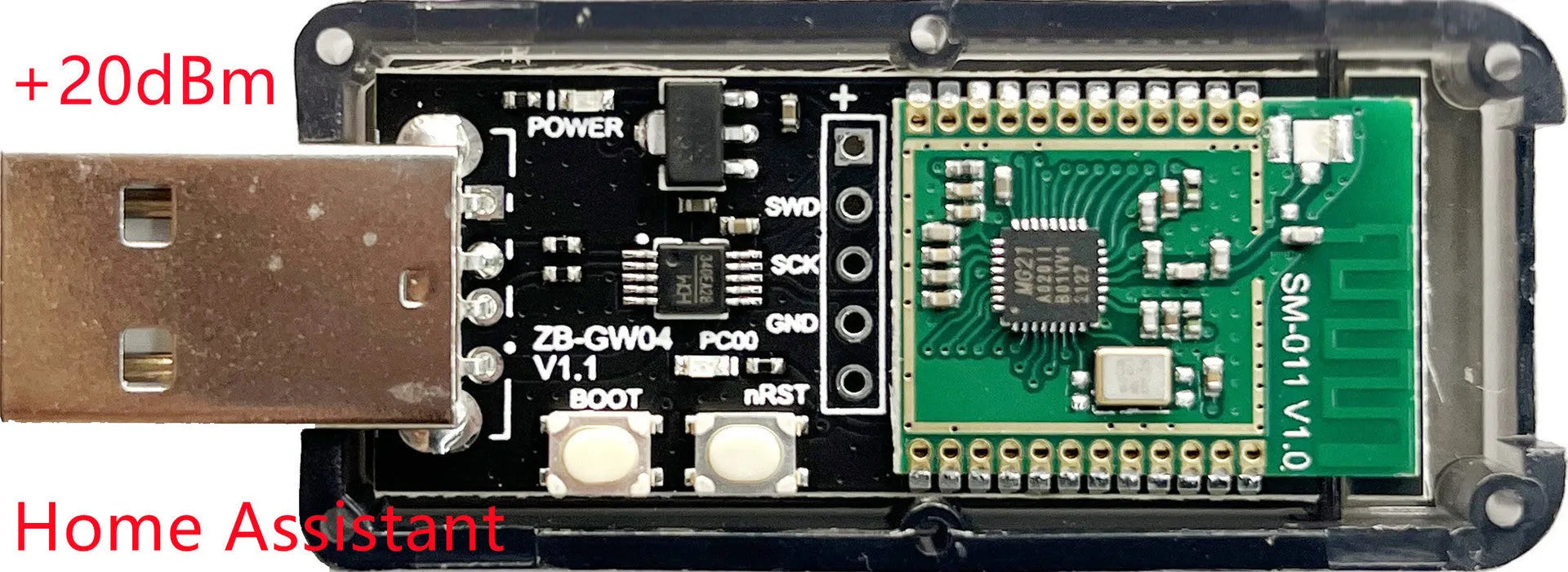

A key specification is the +20dBm output gain, which denotes a higher transmit power capability for the radio signal. This can contribute to more robust network coverage and better penetration through walls within a home environment. The signal is broadcast and received via a PCB (Printed Circuit Board) antenna integrated directly onto the device's circuit board, offering a compact and reliable solution without external antenna components.

Physical Build and Interface

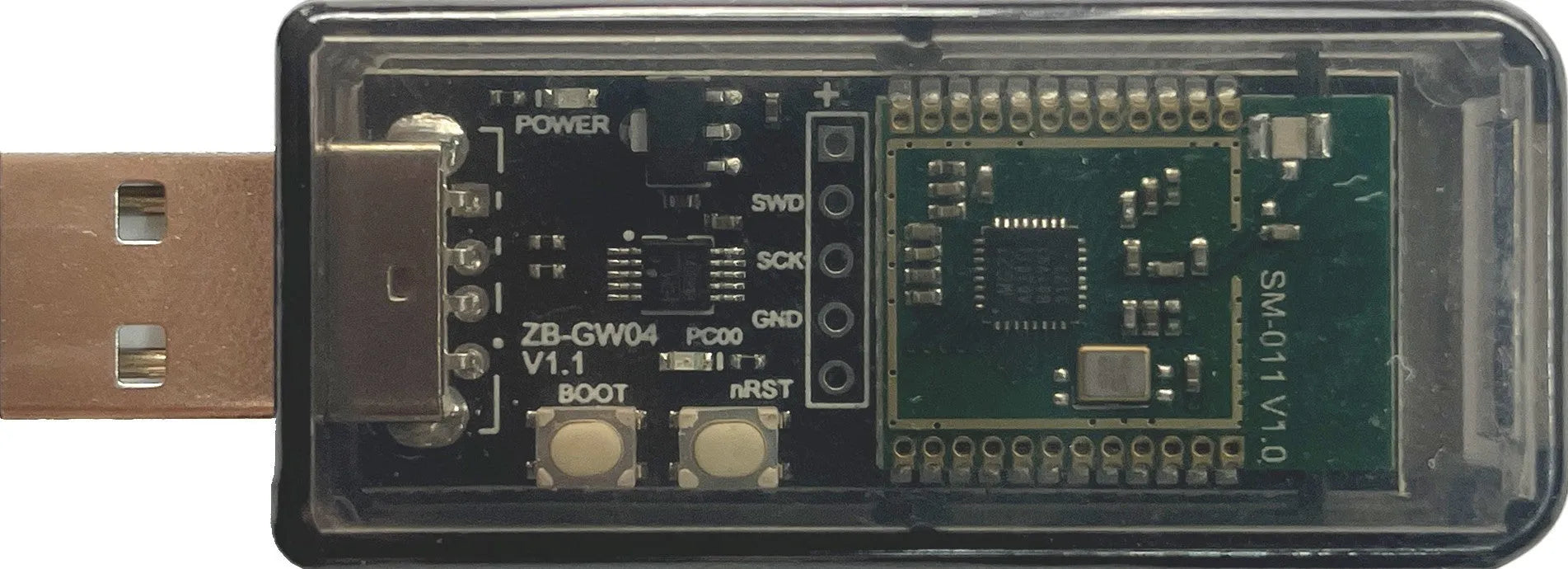

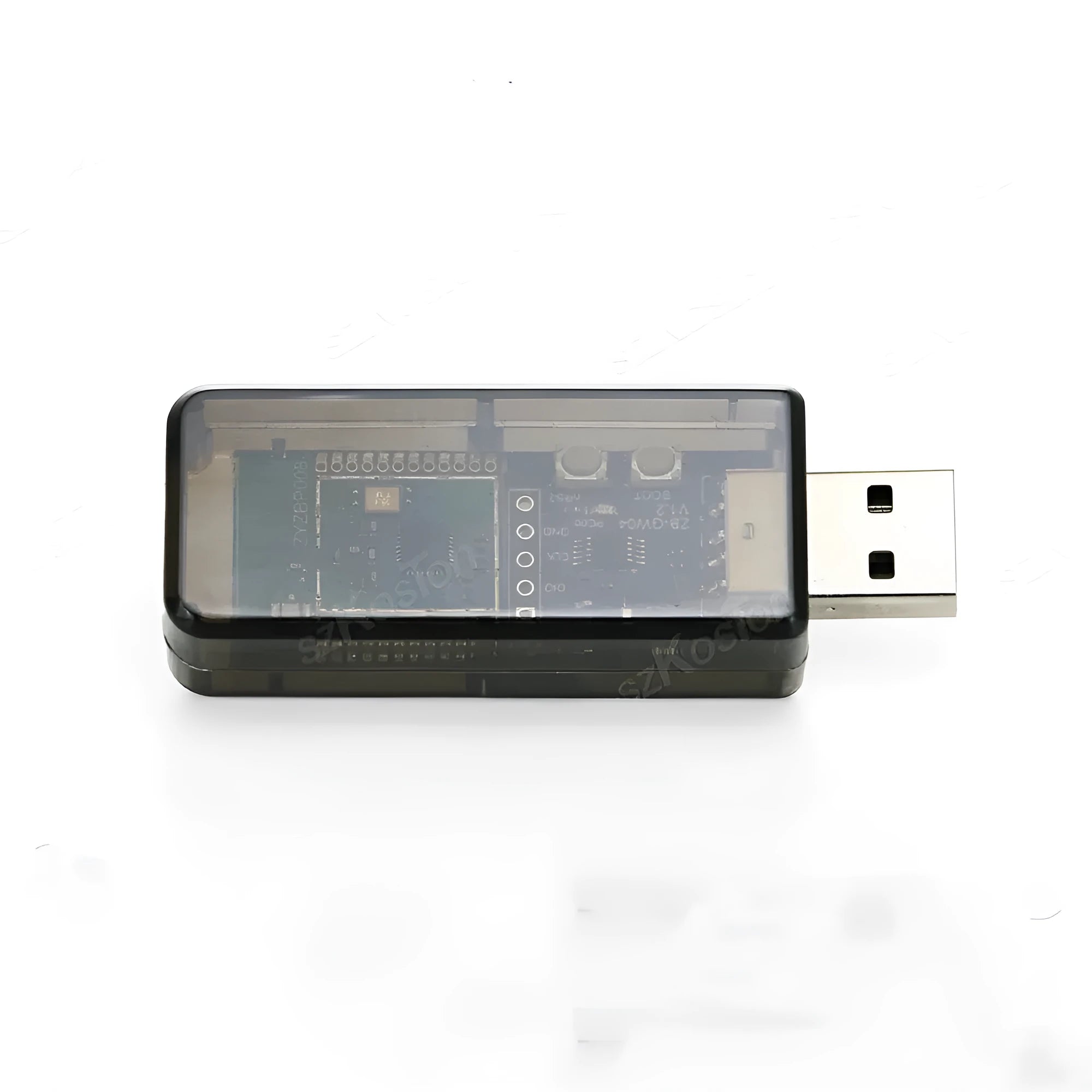

The electronic components are housed within a plastic shell, providing basic physical protection. The device features two user-accessible buttons labelled BOOT and nRST, which are used in conjunction for initiating the Over-the-Air (OTA) update mode via the UART interface. The standard serial communication operates at a baud rate of 115200, a common speed for such devices.

Software Integration and Use Cases

This dongle's primary value is realised when paired with compatible gateway software. Its pre-flashed firmware and standardised protocol support streamline the process of creating a self-hosted smart home hub.

Gateway Software Compatibility

The dongle is confirmed to work with Home Assistant when using its built-in ZHA (Zigbee Home Automation) integration, and it is also supported by the popular Zigbee2MQTT open-source bridge software. The pre-installed EZSP v8 firmware is the crucial layer that allows these software packages to communicate with and control the Zigbee radio hardware, managing network formation and connected end devices like sensors, switches, and bulbs.

Firmware Management and Updates

To maintain functionality and security, the dongle supports firmware updates delivered Over-the-Air (OTA). This process is initiated manually via the UART interface by following a specific button sequence: press and hold the BOOT button, then press and release the nRST button, before finally releasing the BOOT button. This puts the device into a bootloader mode ready to accept new firmware, ensuring it can be kept up to date with the latest protocol features and bug fixes.

Practical Considerations and Setup

While designed for technical enthusiasts, understanding its scope and correct handling ensures a smooth integration into your home automation project.

Setup and Operational Notes

Setup involves physically connecting the dongle to an available USB port on a computer, server, or single-board computer like a Raspberry Pi that will host the gateway software. The software must then be configured to use the correct serial port corresponding to the dongle. As it uses a standardised protocol, there is potential for it to function with other Zigbee gateway solutions, but this compatibility is not explicitly confirmed or tested, so results may vary.

Understanding the Product's Role

This product is specifically a coordinator device; it forms the root of a Zigbee network but does not itself provide a user interface. The control and automation logic are provided entirely by the software it connects to, such as Home Assistant. Its value lies in offering a flexible, vendor-agnostic hardware foundation for a smart home system, allowing you to choose from a wide range of Zigbee devices and control them through your preferred automation platform.
