L298N Motor Driver Module: Dual H-Bridge Control for Robot Vehicles and Electronics Projects

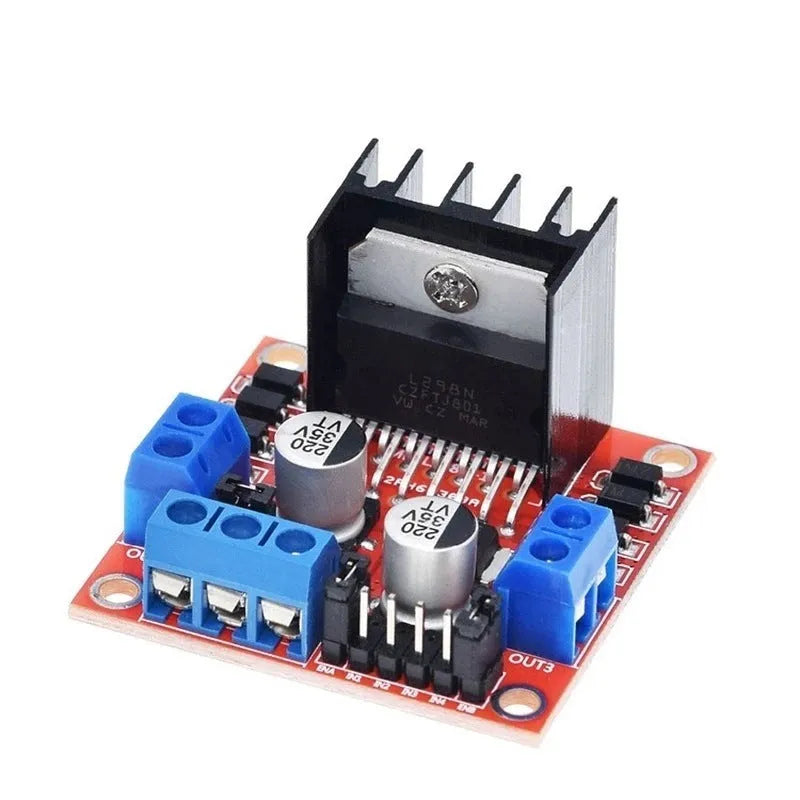

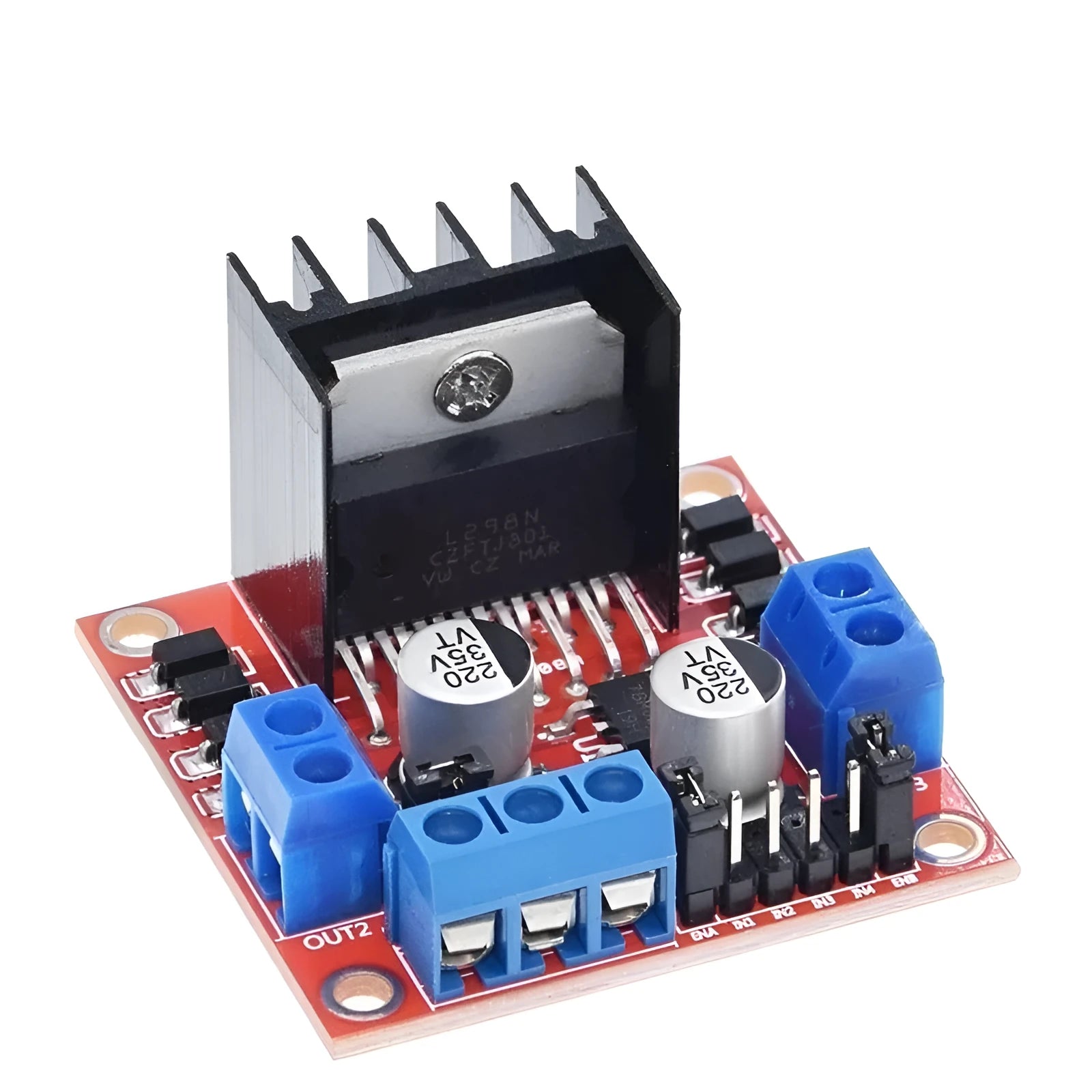

This L298N motor driver module serves as a fundamental building block for robotics and automation projects, offering reliable bidirectional control of DC motors and stepper motors. Built around the robust L298N dual full-bridge driver chip, this compact board provides an interface between low-power microcontroller signals and the higher current requirements of motors. With a driving voltage range spanning from 5V to 35V and a maximum output current of 2A per bridge, it accommodates a variety of small to medium-sized motors commonly used in DIY robot cars, CNC machines, and automated systems. The module's 5V logic level input makes it directly compatible with popular development platforms like Arduino and Raspberry Pi, simplifying circuit design and reducing component count in your projects.

Features and Construction

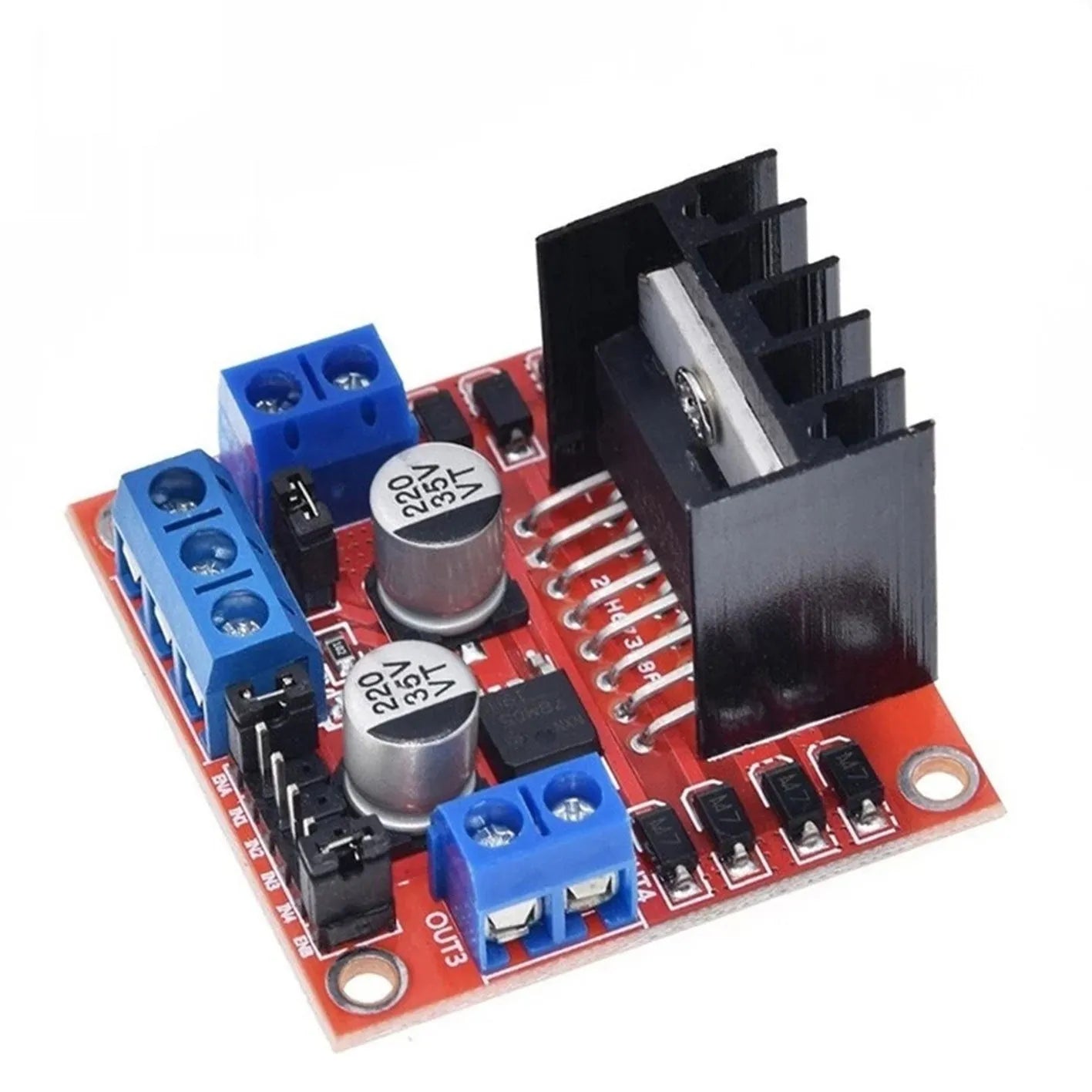

The module's design focuses on practical functionality for electronics enthusiasts and robotics builders. Its construction centres on the L298N integrated circuit, which handles the high-current switching required for motor control while being managed by low-power logic signals.

Material and Build

The module utilises a standard PCB substrate that hosts the L298N driver chip along with supporting components like capacitors, resistors, and terminal blocks. The L298N chip itself is a dual full-bridge driver capable of controlling inductive loads such as relays, solenoids, and DC motors. The board includes screw terminals for motor and power connections alongside pin headers for logic inputs, enabling both permanent soldered connections and temporary prototyping setups. This material selection provides a balance between electrical performance, mechanical durability for workshop use, and cost-effectiveness for educational and hobbyist applications.

Size and Practical Fit

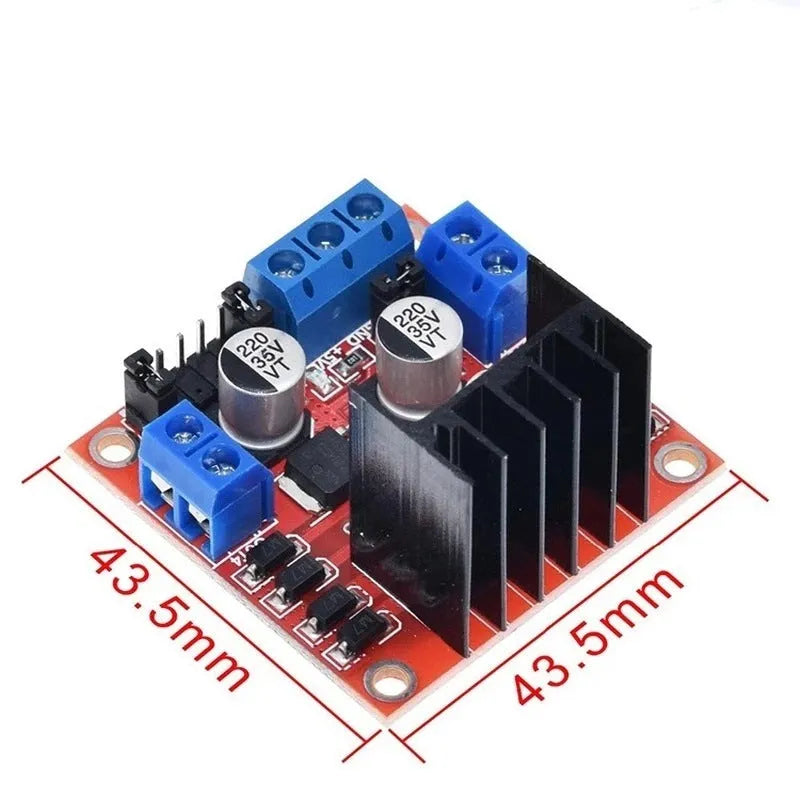

With compact peripheral dimensions measuring 43mm in length, 43mm in width, and 27mm in height, this module occupies minimal space within your project enclosure. The 30-gram weight ensures it adds negligible mass to mobile robot platforms while remaining sturdy enough for stationary installations. This size profile allows integration into constrained spaces typical of robot chassis, 3D printer designs, and small automation equipment. The board's standard mounting hole pattern accommodates secure attachment using M3 screws, preventing movement during operation while maintaining accessibility for wiring adjustments.

Uses and Placement

The module's technical specifications support its application across various robotics and control system scenarios. Its dual H-bridge architecture provides flexibility in motor configuration, allowing for different control strategies depending on project requirements.

Event or Professional Use

In educational settings, robotics competitions, and workshop demonstrations, this module offers a reliable platform for teaching motor control principles. Its clear terminal labeling and straightforward logic interface enable students to understand H-bridge operation, PWM speed control, and direction management without complex peripheral circuitry. For prototype development in professional environments, the module accelerates testing phases by providing pre-assembled motor drive circuitry that meets the 25W power requirement for many small mechanical systems. The wide 5V-35V driving voltage range accommodates various laboratory power supplies and battery configurations commonly available in workshop settings.

Everyday Home Use

DIY enthusiasts can incorporate this module into home automation projects, robotic toys, and customised tools. The ability to control both DC motors and stepper motors makes it suitable for automated window blinds, pet feeders, camera sliders, and small CNC routers. Hobbyists building robot cars or tracked vehicles benefit from the dual bridge design that can independently control left and right drive motors for precise manoeuvring. The module's compatibility with 5V logic systems means it works directly with popular microcontroller boards already present in many makers' collections, reducing the need for additional level-shifting components.

Benefits and Buying Value

This motor driver module provides practical advantages for electronics projects through its balanced specifications and straightforward implementation. The combination of adequate power handling, compatibility with common components, and compact form factor creates a versatile control solution.

Reuse and Low Maintenance

The module's robust construction with soldered components and the L298N chip's specified operating temperature range of -20℃ to 135℃ supports repeated use across multiple projects. Unlike breadboard-based discrete component designs, this assembled module maintains connection integrity through movement and reassignment between different prototypes. The screw terminal connections allow wire changes without desoldering, facilitating component recycling as projects evolve. With no moving parts and minimal heat generation within its 2A current specification, the module requires virtually no maintenance beyond basic electrical connection checks.

Why Choose This Product

This L298N module stands out for its balance of adequate power capacity and straightforward integration. The 25W power rating and 2A current capability meet the needs of most small to medium robot motors without the complexity and cost of higher-rated industrial drivers. Its 5V logic compatibility eliminates the need for additional level shifters when used with common microcontroller boards, simplifying circuit design and reducing potential failure points. The compact 43mm x 43mm footprint ensures it fits within space-constrained robot chassis while providing all necessary connections through clearly labeled terminals. For electronics enthusiasts seeking a reliable motor control solution that works immediately without extensive supporting circuitry, this module delivers practical functionality backed by the widely-documented L298N driver chip.
