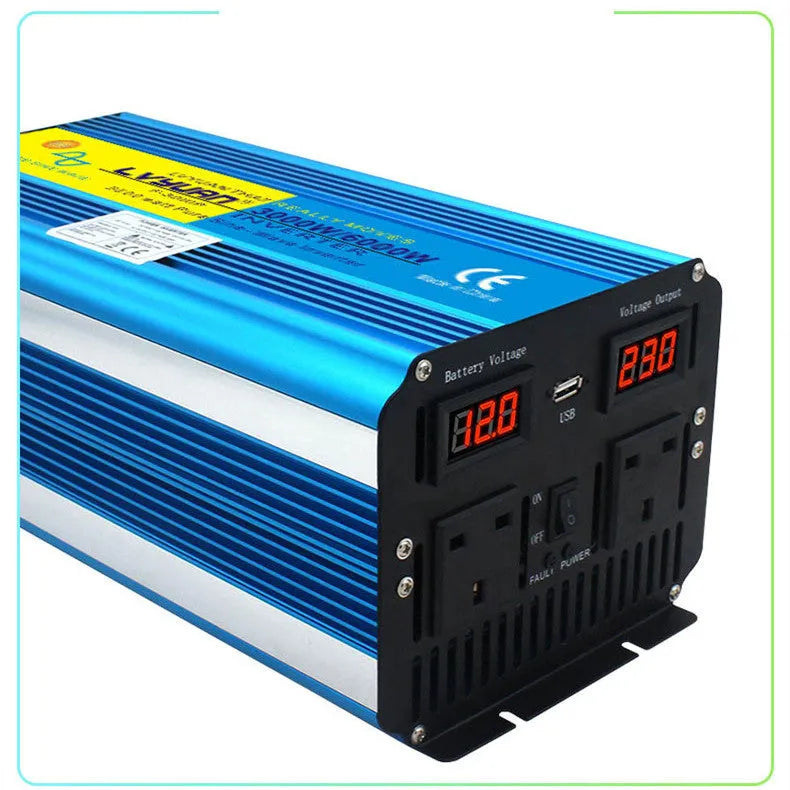

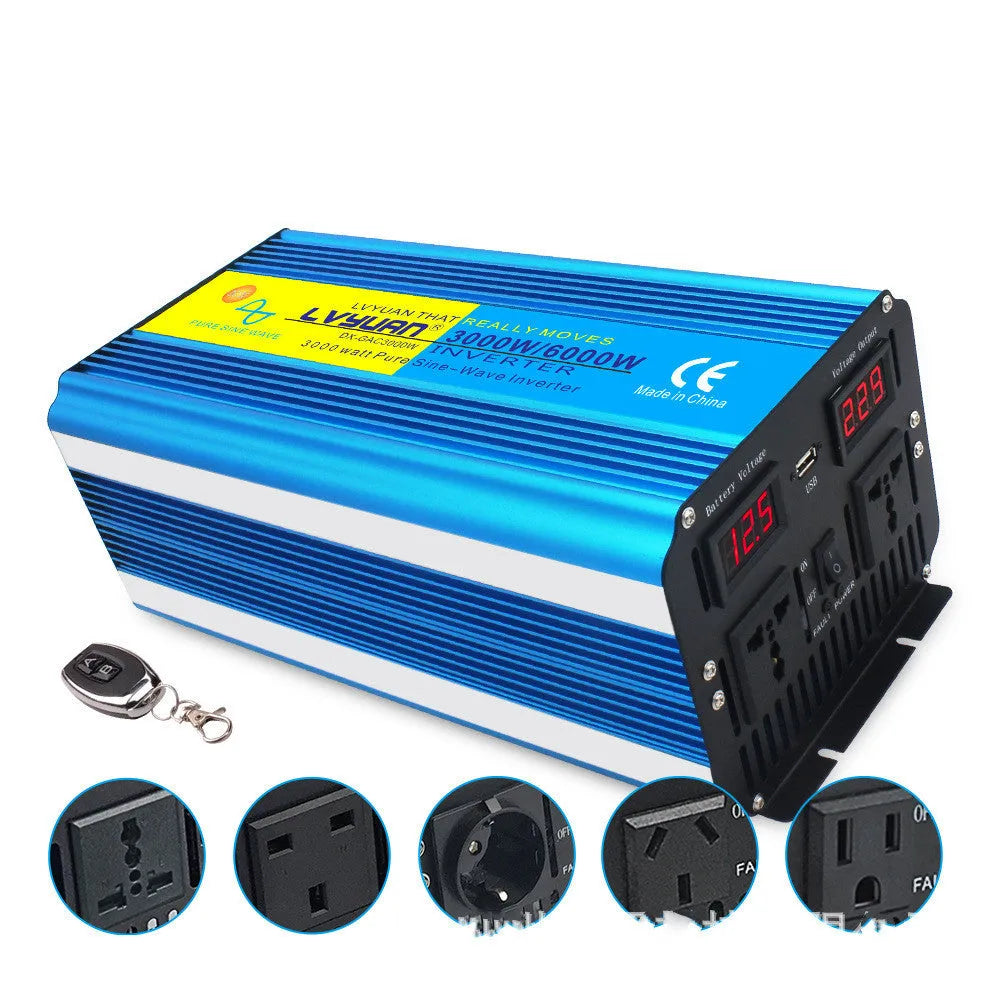

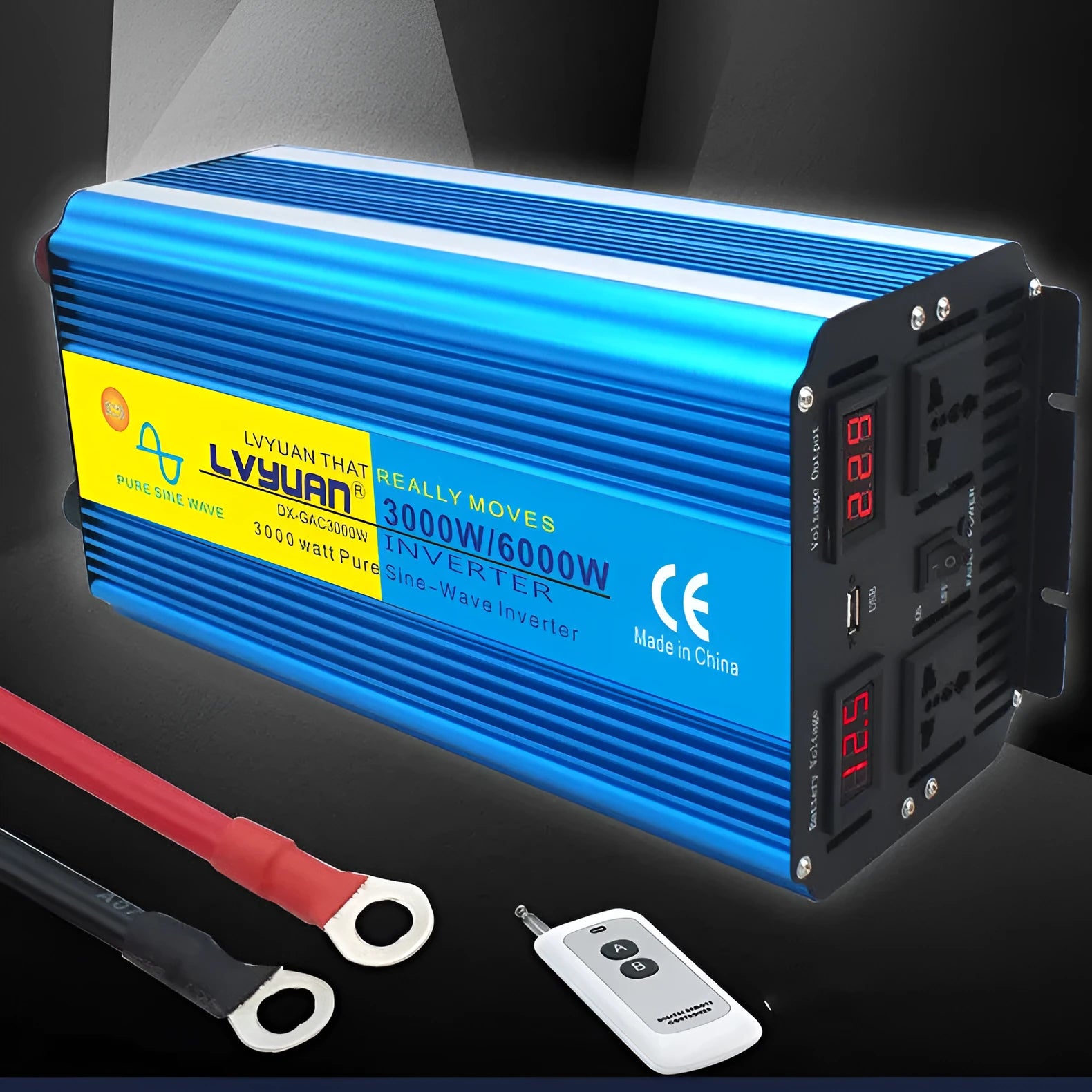

3000W Continuous 6000W Peak Pure Sine Wave Power Inverter with Remote Control and British Socket
Designed for converting vehicle DC power to UK standard mains electricity, this high-power pure sine wave inverter delivers 3000 watts of continuous power with a 6000-watt surge capacity. It accepts either 12V or 24V input from your vehicle's electrical system and outputs 220V at 50Hz/60Hz, making it compatible with a wide range of electronic equipment and appliances. The blue-coloured unit measures 41cm in length, 18cm in width, and 14cm in height, with a weight of 4.2kg, containing the power conversion electronics within an aluminium alloy housing that aids in heat dissipation during operation.
Technical Specifications and Performance
This inverter provides substantial power conversion capabilities with detailed technical parameters designed for reliable vehicle-to-mains electricity supply. With 90% conversion efficiency, it minimises energy waste while delivering clean power suitable for sensitive electronics.
Power Output Capabilities
The inverter delivers 3000W of continuous power output with a peak capacity of 6000W for short-duration surges when starting motors or capacitive loads. This makes it suitable for powering power tools, kitchen appliances, or multiple devices simultaneously while connected to your vehicle's electrical system. The pure sine wave output ensures compatibility with sensitive electronics including medical equipment, audio systems, and computers that require clean power waveforms.
Electrical Parameters
Input voltage flexibility allows connection to either 12V or 24V vehicle electrical systems, while output provides standard UK 220V electricity at both 50Hz and 60Hz frequencies. The British Standard 3-pin socket accepts standard UK plugs, providing safe connection for appliances. The dual digital displays show input and output parameters including voltage, current, and power readings for monitoring during operation.
Control and Operation
Remote control operation allows convenient switching and monitoring from a distance, particularly useful when the inverter is installed in vehicle boots or storage areas. The unit includes overload protection and thermal safeguards that activate during excessive load conditions or high-temperature operation. Proper cable connections using the included wiring ensure minimal voltage drop and efficient power transfer from the vehicle battery to connected appliances.
Construction and Physical Design
The inverter's physical construction focuses on durability and effective heat management during extended high-power operation periods. Its dimensions and material choices balance performance with practical installation considerations in various vehicle types.
Material and Heat Management
An aluminium alloy housing provides both structural integrity and effective heat dissipation for the internal electronic components during sustained operation. This material choice helps maintain optimal operating temperatures for the MOSFET transistors, high-frequency transformers, and control circuitry that convert DC to AC power. Ventilation slots in the design allow air circulation while protecting internal components from environmental factors.
Size and Installation Considerations

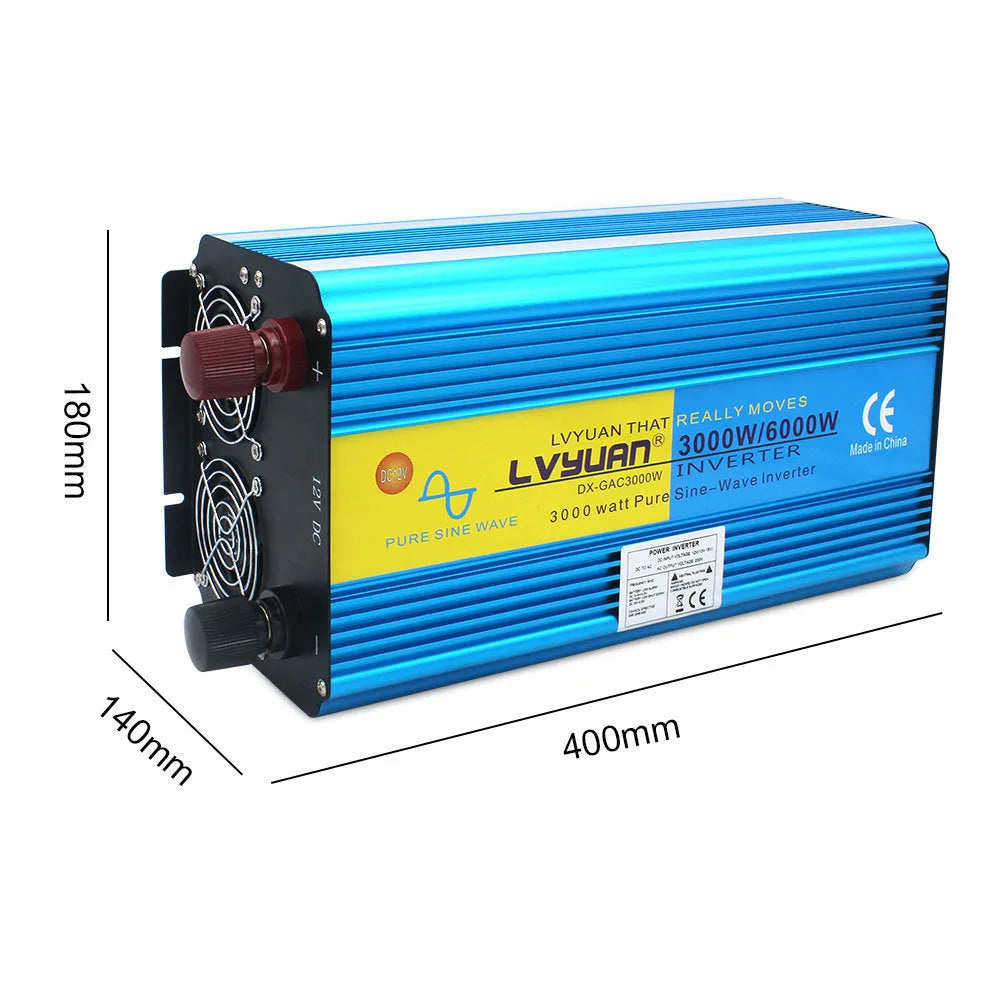

Measuring 41cm long, 18cm wide, and 14cm high, the inverter requires adequate space for installation while ensuring sufficient airflow around all sides. The 4.2kg weight indicates substantial internal components capable of handling the rated power loads. Installation locations should consider cable routing from the vehicle battery to the inverter and from the inverter to the appliances being powered, with attention to cable sizing for the current requirements of connected devices.
Connection and Interface Design

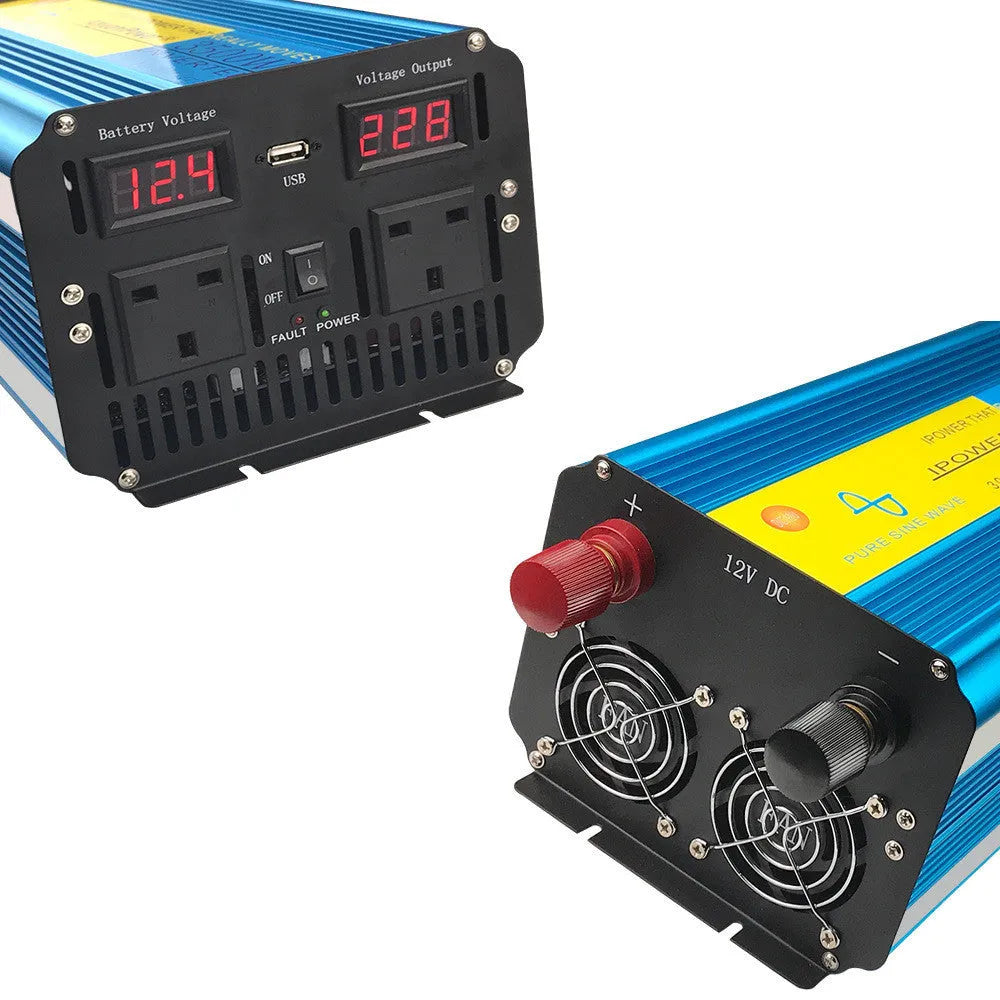

The British Standard 3-pin socket provides familiar connection for UK plugs with appropriate safety shutters. Input connections accommodate standard battery cables with secure terminal connections to prevent disconnection during vehicle movement. The digital display interface shows operational parameters clearly, while status indicators provide immediate visual feedback on inverter operation and any protection mode activations.
Applications and Usage Scenarios
This high-power inverter supports various applications where vehicle-based mains power is required, from leisure activities to professional uses requiring reliable portable electricity.
Vehicle-Based Power Solutions
Ideal for campervans, caravans, work vans, and marine applications where 220V power is needed away from fixed mains supply. The pure sine wave output ensures compatibility with induction cookers, microwaves, power tools, and electronic battery chargers that might not operate correctly with modified sine wave inverters. The remote control allows convenient operation when the inverter is installed in storage compartments or less accessible locations.
Professional and Trade Uses
Tradespeople can power tools like circular saws, angle grinders, or site lighting directly from their work vehicles without requiring generator setups. The 6000W peak capacity handles motor start-up currents for compressors, pumps, or other equipment with high initial power demands. Digital display monitoring helps users track power consumption and battery status during extended work periods away from mains power sources.
