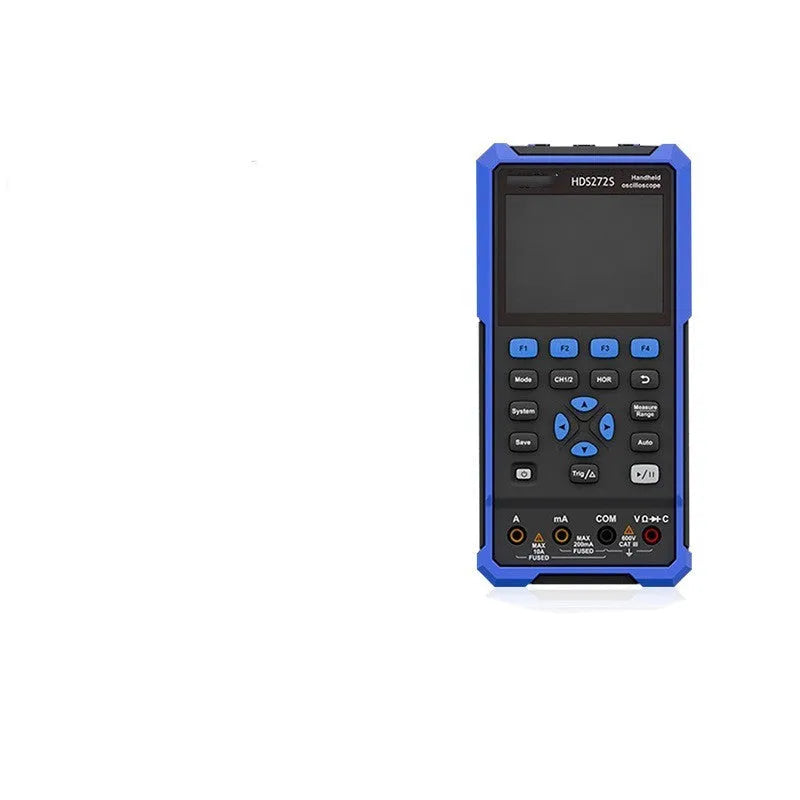

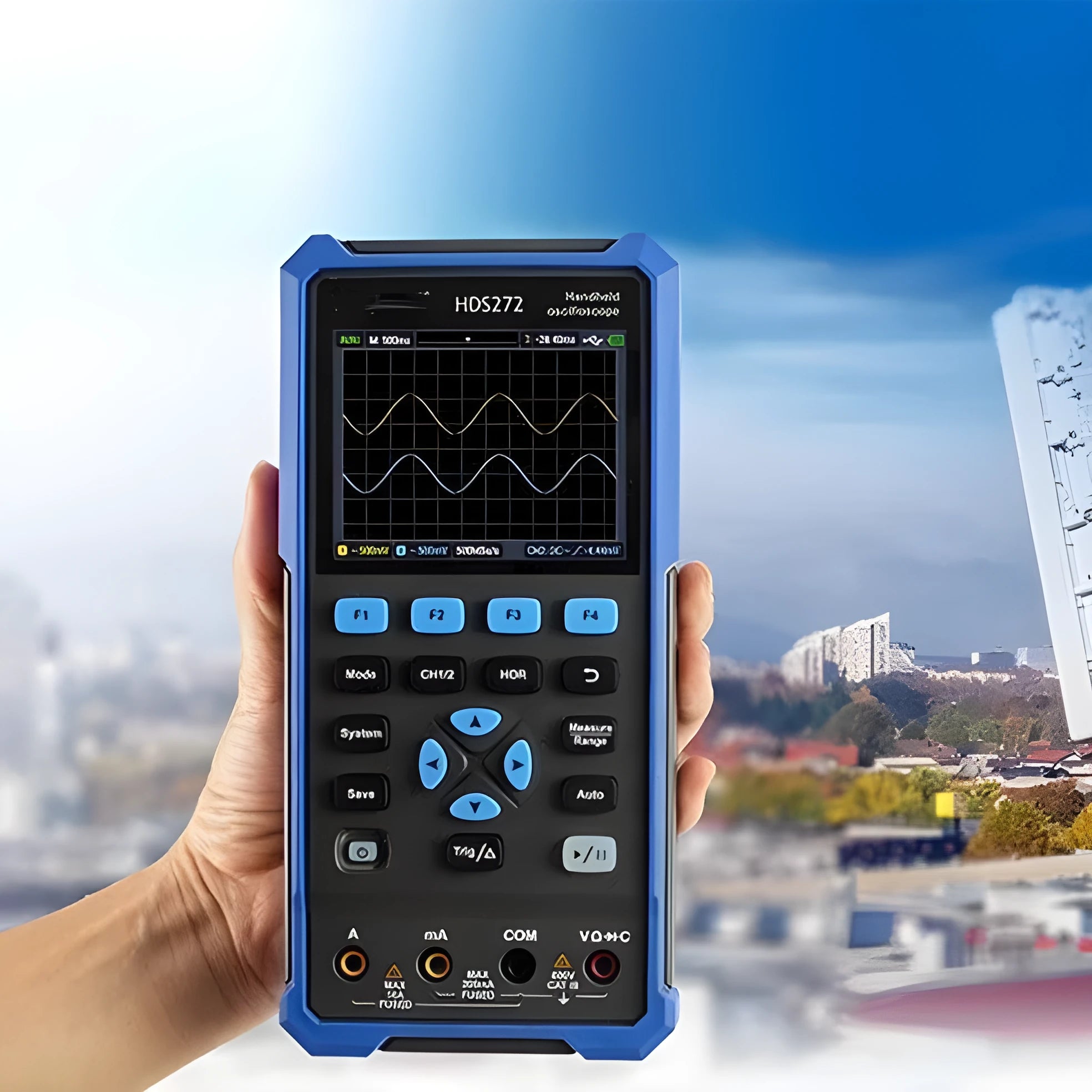

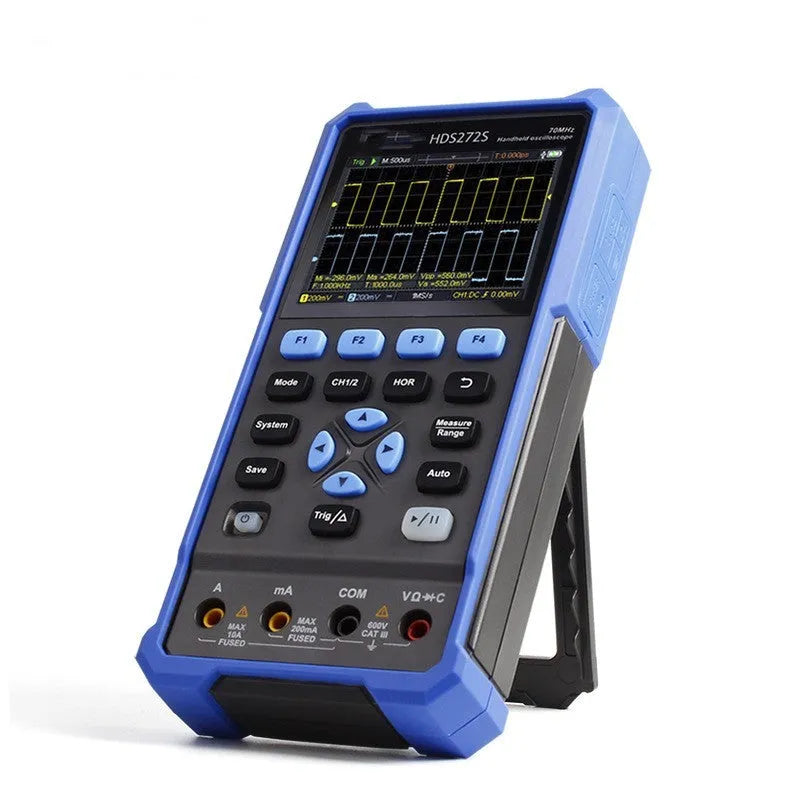

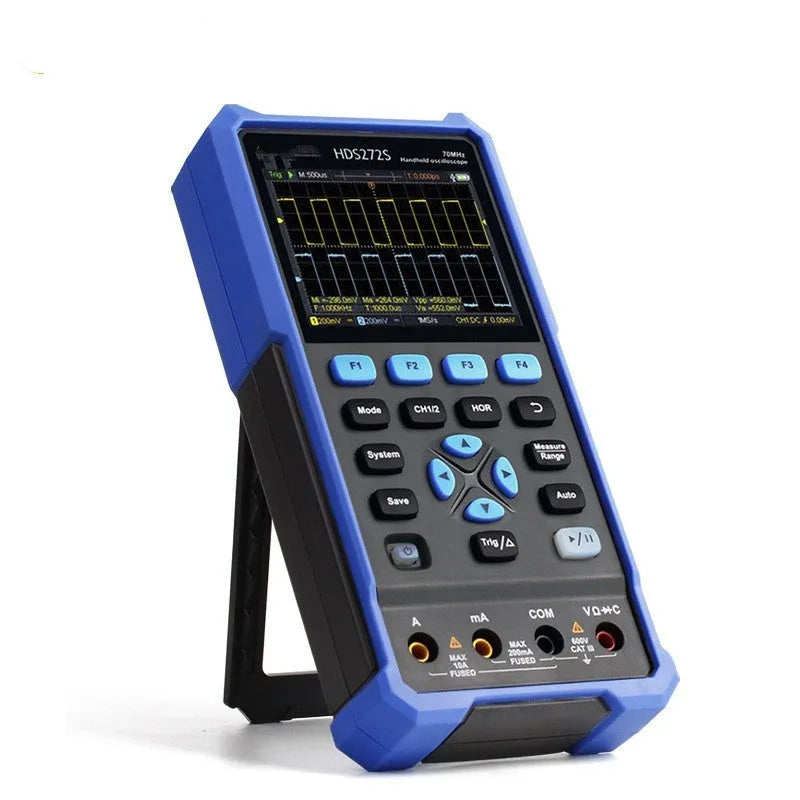

Handheld Digital Oscilloscope with 40-70MHz Bandwidth for Automotive and Electronic Testing

This portable digital oscilloscope provides electrical technicians and automotive repair professionals with a compact waveform analysis tool designed for field service applications. Unlike traditional benchtop oscilloscopes that require stationary workshop setups, this handheld unit combines essential measurement capabilities with complete portability. With its 40-70MHz bandwidth range and 250MSa/s sampling rate, it captures electrical signals with sufficient detail for diagnosing automotive electrical systems, testing electronic circuits, and troubleshooting industrial control systems where mobility is essential. The included complete accessory kit ensures readiness for immediate use in various testing scenarios without needing additional equipment.

Features and Construction

The handheld oscilloscope integrates key measurement specifications into a portable format that balances performance with practical field usability. Its construction focuses on providing reliable waveform analysis capabilities while maintaining a compact physical profile suitable for service technicians who need to move between vehicles or equipment.

Material and Build

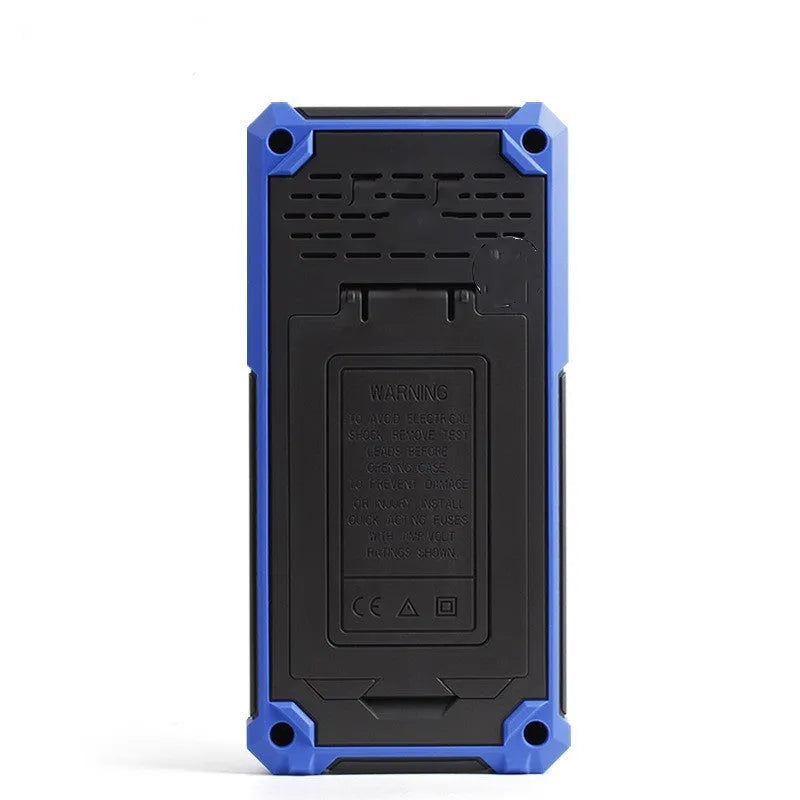

The oscilloscope unit features a plastic housing that provides structural protection for the internal electronic components while keeping the overall weight manageable for handheld operation. The construction includes metal connectors at the BNC input for secure probe attachment and reliable electrical contact during measurements. The design prioritises practical durability for field service environments where equipment may be transported frequently between job sites or within automotive workshops.

Size and Practical Fit

Measuring 198mm in length, 38mm in width, and 96mm in height, the oscilloscope maintains dimensions that allow comfortable handheld operation while providing sufficient display area for waveform observation. This compact size enables storage in toolboxes, service vehicles, or the included portable carrying bag, making it accessible for technicians working in confined automotive engine bays, industrial control panels, or remote field locations where space is limited.

Uses and Placement

The oscilloscope's specifications and portable format make it suitable for specific professional applications where waveform analysis is required outside traditional laboratory or workshop settings. Its measurement capabilities address common electrical diagnostic needs across automotive, electronic repair, and field service contexts.

Event or Professional Use

For automotive electrical diagnostics, the 40-70MHz bandwidth enables observation of signals from engine control units, sensor outputs, ignition systems, and communication buses found in modern vehicles. The 10000wfms/s waveform capture rate allows technicians to identify intermittent faults or signal anomalies that might be missed with slower instruments. This capability proves valuable during systematic troubleshooting of complex automotive electrical issues where signal integrity affects multiple vehicle systems.

Everyday Home Use

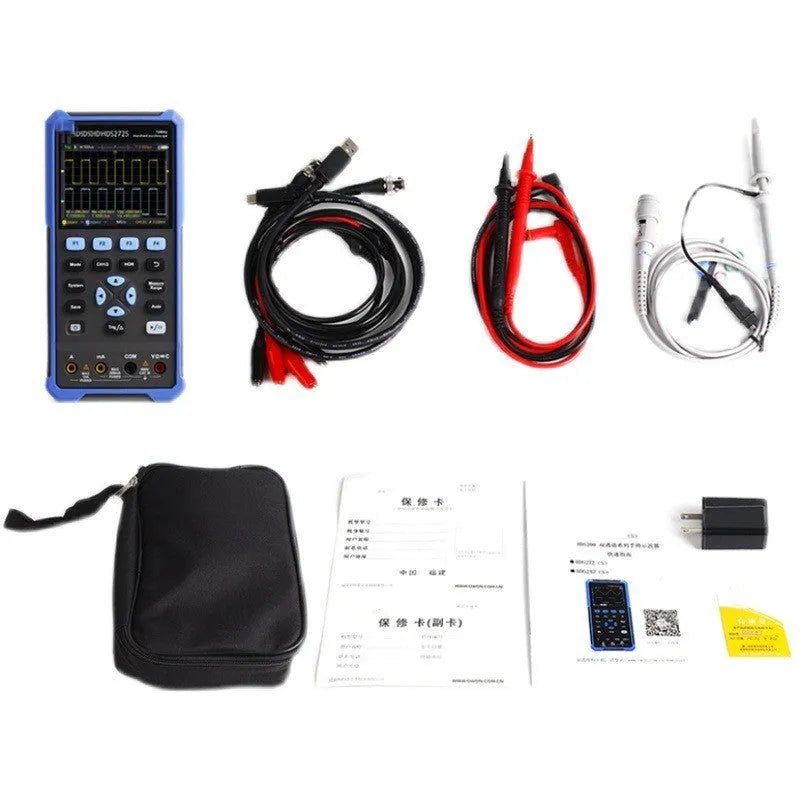

For electronic hobbyists and home technicians, the portable oscilloscope provides basic waveform analysis for circuit prototyping, amplifier testing, and power supply verification. The complete accessory kit, including the oscilloscope probe, multimeter pen, and various adapters, offers flexibility for different measurement scenarios without requiring additional purchases. The USB connectivity supports data transfer and potential software integration for more advanced analysis on a computer if supported by the manufacturer's software.

Benefits and Buying Value

The oscilloscope combines specific measurement capabilities with practical field usability, offering value through its complete kit approach and portable format. This combination addresses common challenges faced by technicians needing waveform analysis outside controlled workshop environments.

Reuse and Low Maintenance

The included carrying bag provides protection during transport between job sites, helping to maintain the oscilloscope's condition through repeated use. The complete accessory set reduces the need for additional purchases, as the BNC-to-crocodile clip adapter, correction pen, and multiple probe types cover common measurement scenarios. This comprehensive approach supports repeated use across different testing applications without requiring supplementary equipment.

Why Choose This Product

This handheld oscilloscope offers a balanced combination of 40-70MHz bandwidth, 250MSa/s sampling rate, and complete portability for technicians requiring waveform analysis capabilities outside traditional workshop settings. The included comprehensive accessory kit ensures immediate usability for automotive diagnostics, electronic circuit testing, and field service applications without needing additional probe or adapter purchases. Its practical dimensions and carrying solution address the mobility requirements of technicians who must transport measurement equipment between vehicles, job sites, or different locations within industrial facilities.
