HW300 Digital Inclinometer: Magnetic Angle Gauge with 0.05° Resolution for Metal Work

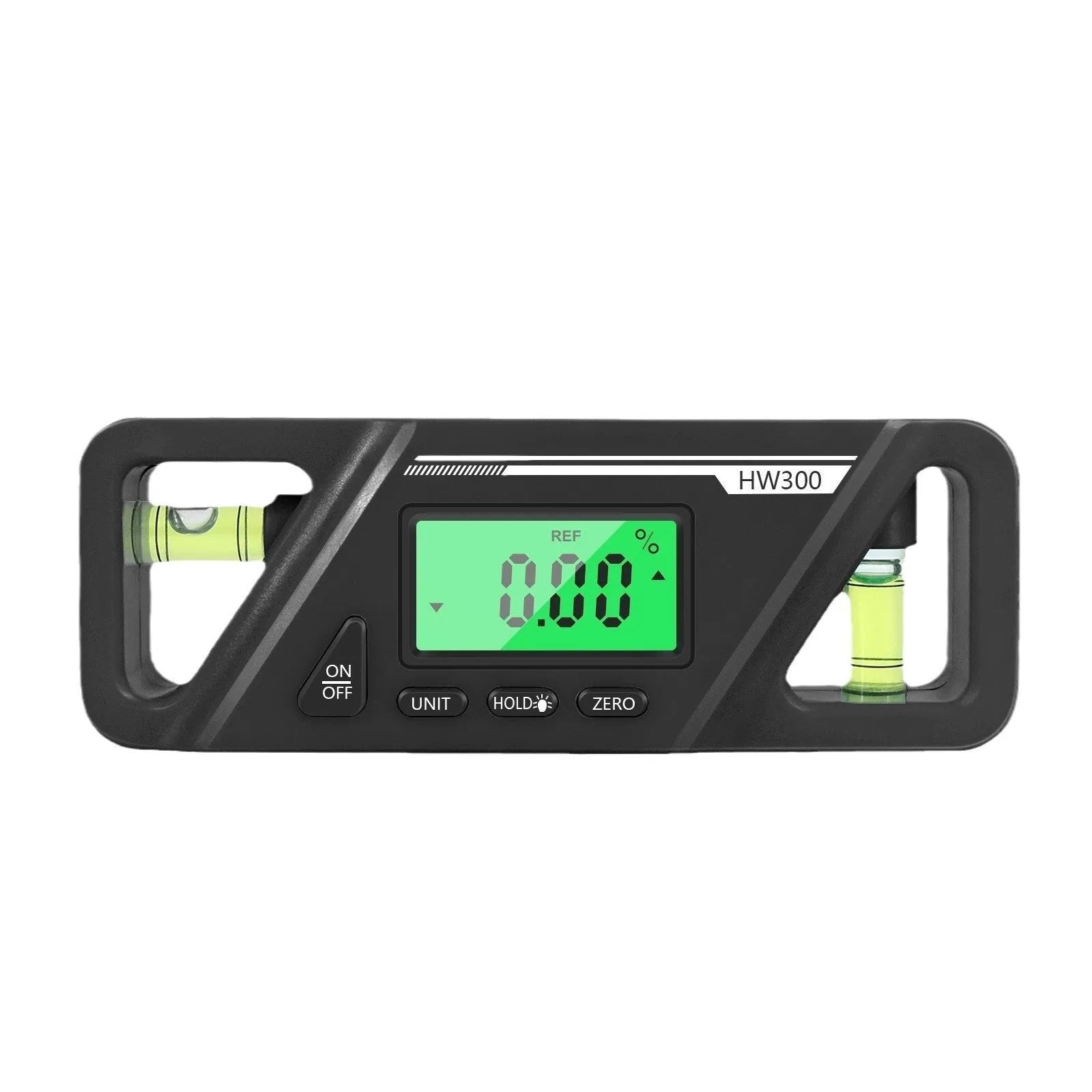

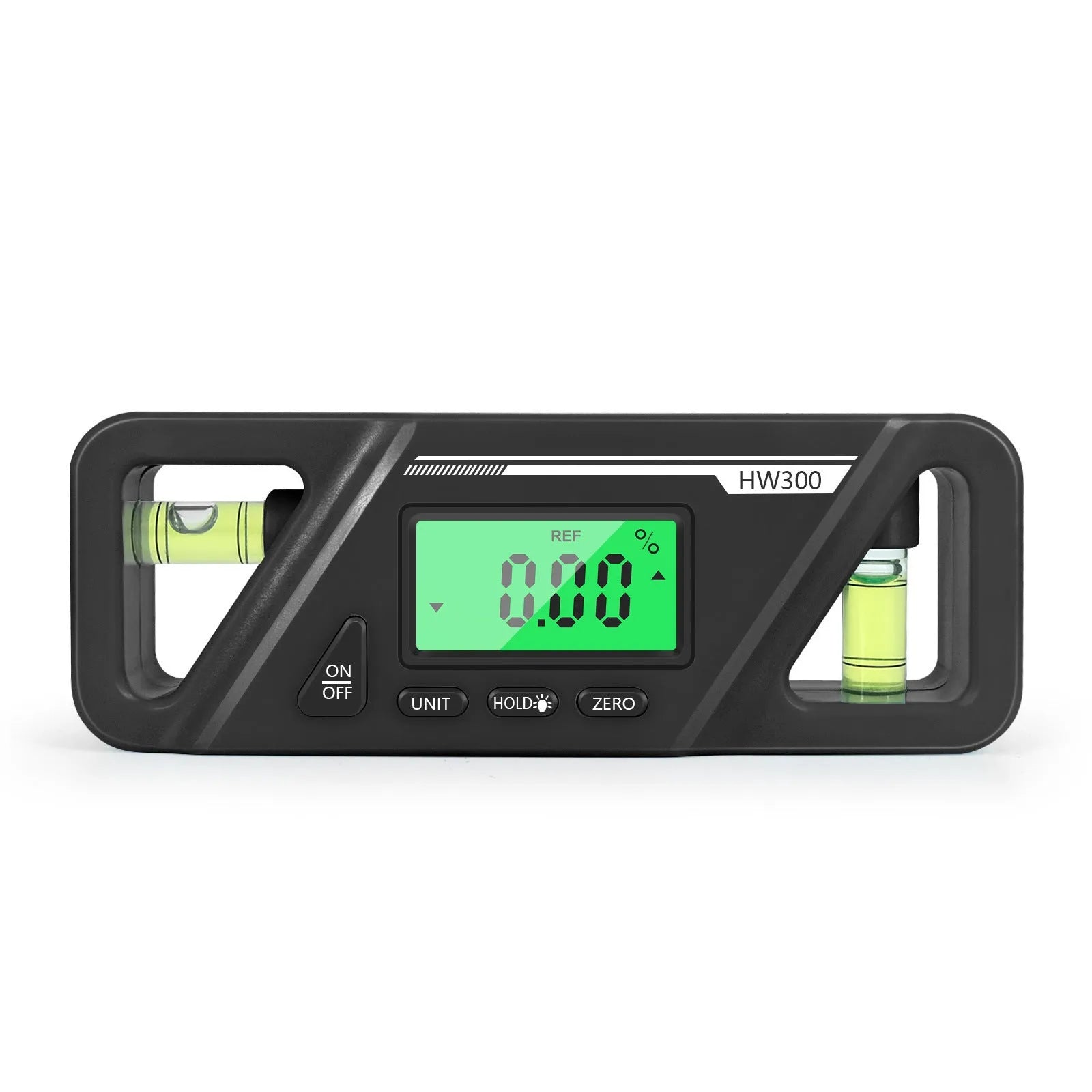

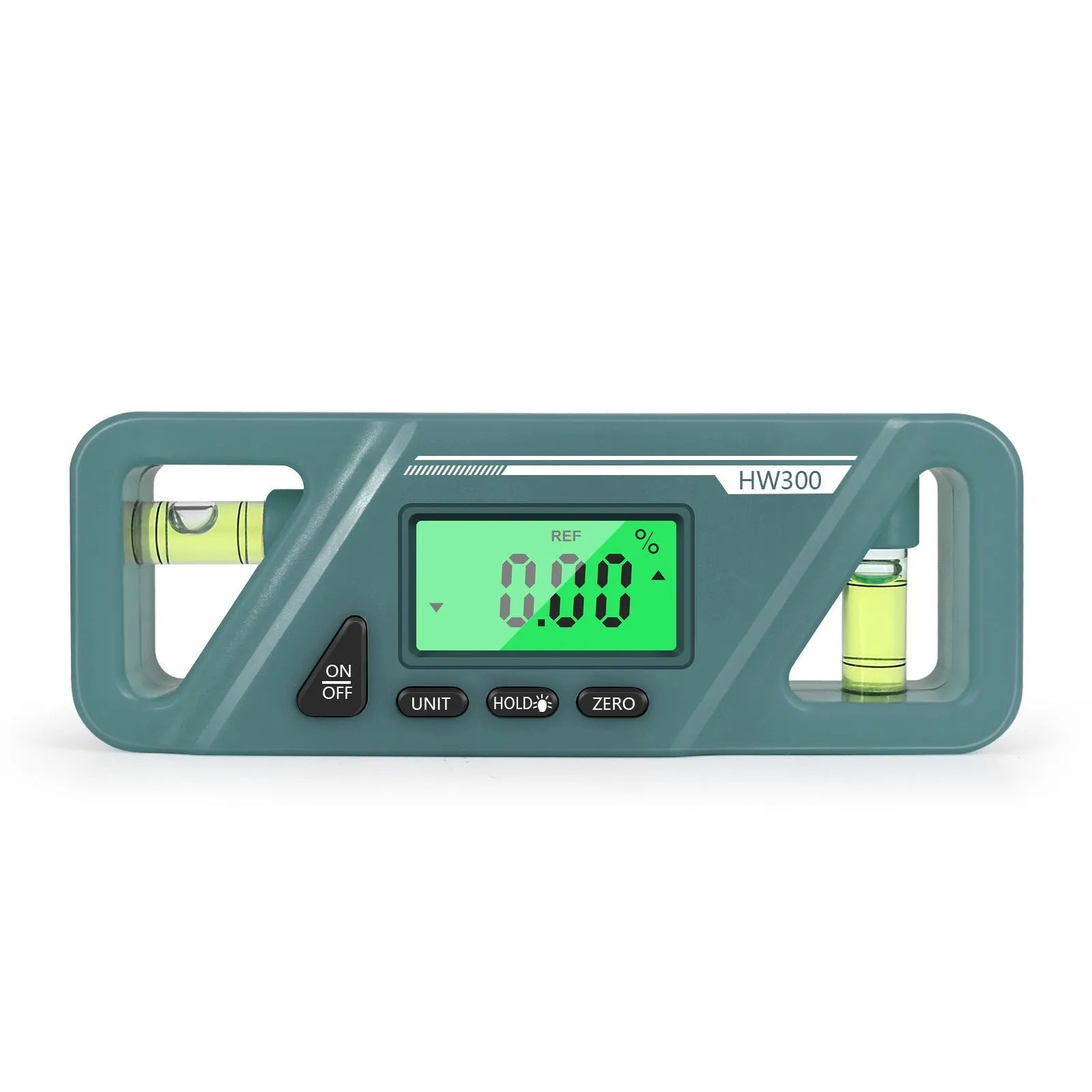

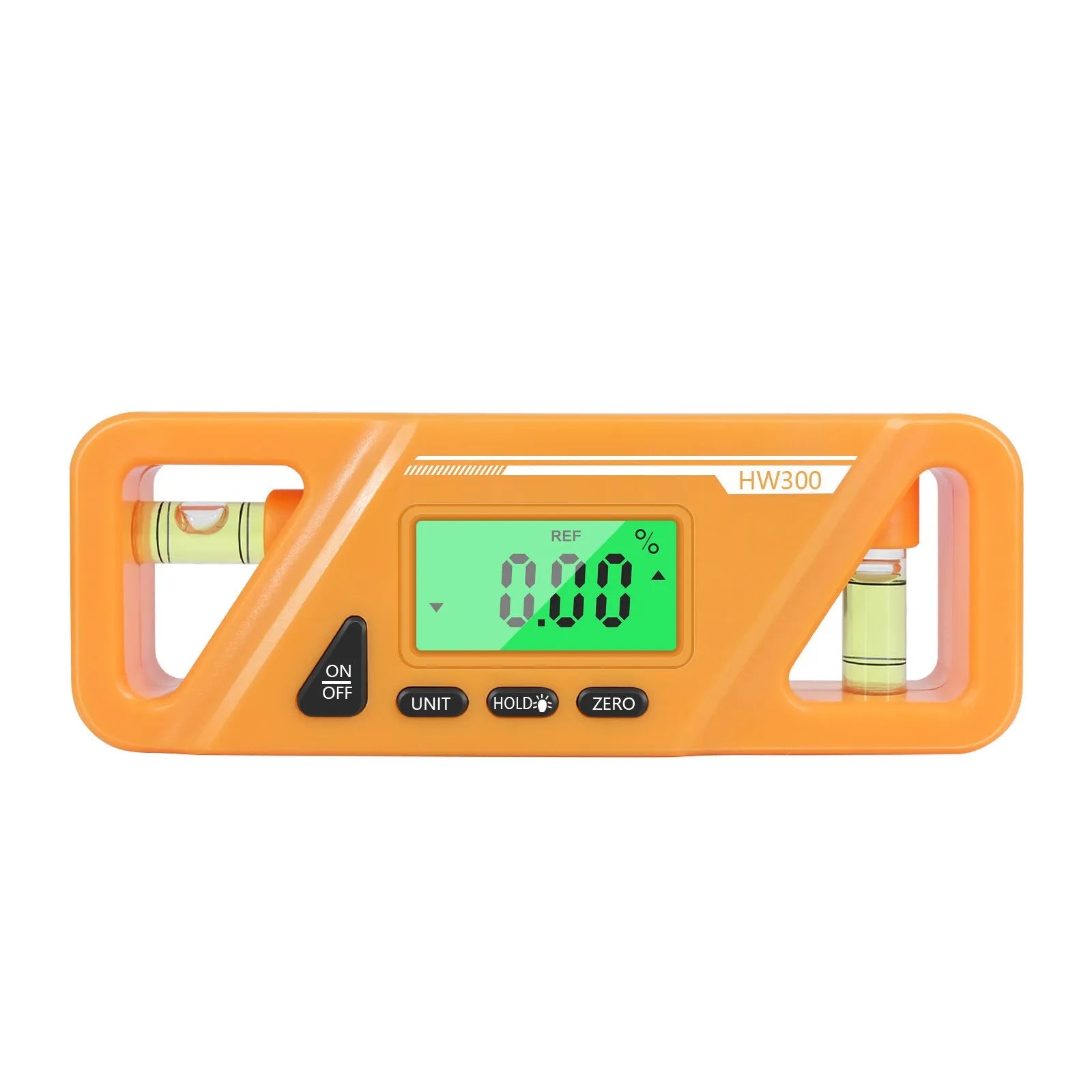

This HW300 series digital inclinometer is designed for precise angle measurement on metal surfaces and workpieces where traditional spirit levels are impractical. Its key feature is magnetic adsorption, allowing the tool to secure itself directly to ferrous metal during measurement. The digital display shows angle readings with 0.05° resolution for angles under 100°, switching to 0.1° resolution from 100° to 180°. With conversion between relative and absolute measurement modes, along with data locking and slope conversion functions, it provides versatile measurement capabilities in a compact 115x42x22mm plastic ABS housing weighing just 56g without battery.

Features and Construction

The HW300 inclinometer combines several practical features for workshop and site measurement tasks. Its construction focuses on providing reliable readings within its specified operational parameters.

Material and Build

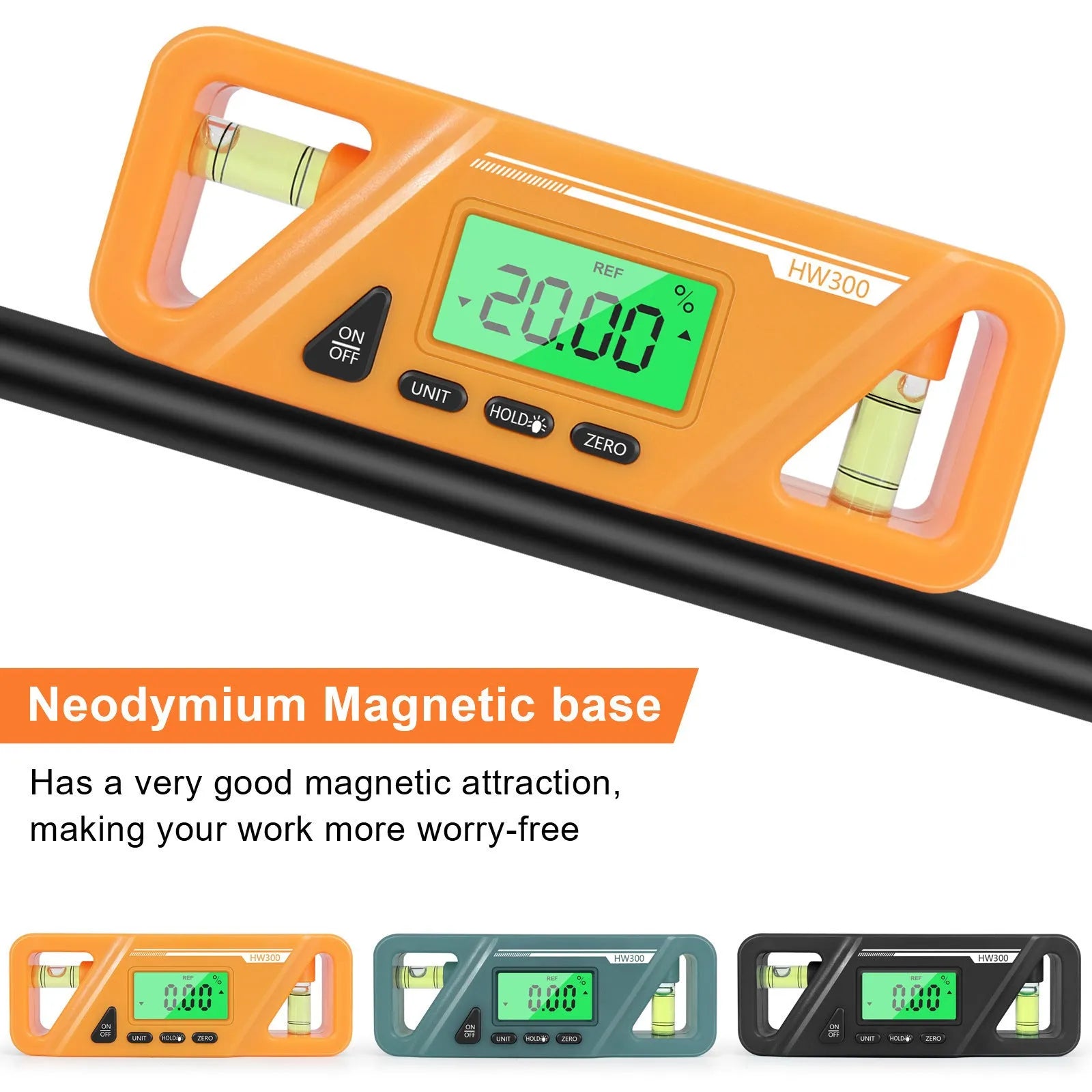

The device housing is made from plastic ABS, creating a lightweight yet rigid structure suitable for handheld measurement tools. This material choice contributes to the 56g net weight (without battery), making it genuinely portable. The magnetic adsorption system is integrated into the base, designed to adhere to measured workpieces, though the specific magnet strength or pull force is not detailed in the specifications. The build accommodates operation within a 0°C to 40°C temperature range.

Size and Practical Fit

With dimensions of 115x42x22mm, the inclinometer is designed for portability and easy use alongside other measurement tools. This compact size allows it to be carried in tool bags or pockets. The package size is 120x48x28mm, slightly larger than the device itself, while cartons for bulk shipments measure 41x38x30cm with a weight of 15.6kg containing 200 units. The display is integrated into this form factor, providing clear digital readouts without requiring excessive space.

Uses and Placement

The magnetic adsorption feature defines many of this inclinometer's primary applications, particularly in metalworking and construction environments.

Event or Professional Use

In professional settings like metal fabrication shops, engineering workshops, or construction sites, the magnetic base allows for hands-free measurement on machinery, structural steel, or metal workpieces. The ability to convert between relative and absolute measurement modes supports various technical applications, from setting machine tool angles to verifying structural alignments. The ±0.2° accuracy and 0.1° repeatability provide sufficient precision for many industrial measurement tasks within the tool's temperature operating range.

Everyday Home Use

For DIY enthusiasts and home workshop users, the portable size makes it convenient for projects involving metal components, from furniture assembly to vehicle maintenance. The data locking function helps when measuring in awkward positions or when the display cannot be viewed directly during measurement. The angle and slope conversion capabilities assist with projects requiring specific gradients or pitches, though the tool is specifically designed for ferrous metal surfaces due to its magnetic base.

Benefits and Buying Value

The HW300 inclinometer offers practical advantages for users needing reliable angle measurement on metal surfaces without complex setup procedures.

Reuse and Low Maintenance

The device requires minimal maintenance beyond battery replacement and operation within its specified 0°C to 40°C temperature range. The plastic ABS construction is designed for repeated use in measurement applications, though specific data on impact resistance or long-term wear characteristics is not provided. The magnetic adsorption system provides consistent performance for metal surface measurement without requiring adhesives or mounting hardware that would need replacement.

Why Choose This Product

This inclinometer addresses the specific need for portable, digital angle measurement on metal surfaces with its combination of magnetic adhesion, clear digital display with 0.05° resolution, and multiple measurement modes. The compact 115x42x22mm size makes it genuinely portable for use across different locations or alongside other tools. While it offers ±0.2° accuracy and operates within a defined temperature range, users should note that performance in conditions outside 0°C to 40°C or on non-ferrous metals is not specified.
